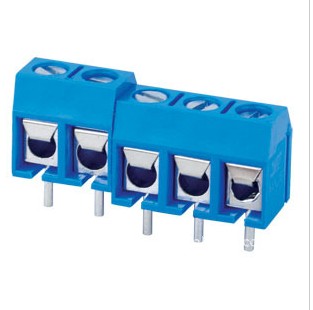

PCB terminal block WJ301
PCB terminal block WJ301Item Code / Model Number:
PCB terminal block WJ301
PCB terminal block WJ301 -5.0MM -2P -1000PCS
UL CE ROHS
FEDEX DHL EMS FREE SHIPPING
Pitch: 5.0mm
Material
Screws: M3.0 steel Zinc plated
Wire guard: Phosphor bronze,Ni plated
Pin header: Brass,Tin plated
Housing: PBT,UL94V-0
Electrical
Standard: UL IEC
Rated voltage: 300V 250V
Rated current: 15A 24A
Contact resistance: 20m
Insulation resistance: 5000M/DC1000V
Withstanding voltage: AC 2000V/1 Min
Wire range: 22-14AWG 2.5mm²
Mechanical
Temp.Range: -30?120
MAX Soldering: +250,for 5 Sec.
Torque: 0.5Nm(4.5Lb.in)
Strip length: 4.5-5mm
UL CE ROHS
FEDEX DHL EMS FREE SHIPPING
Pitch: 5.0mm
Material
Screws: M3.0 steel Zinc plated
Wire guard: Phosphor bronze,Ni plated
Pin header: Brass,Tin plated
Housing: PBT,UL94V-0
Electrical
Standard: UL IEC
Rated voltage: 300V 250V
Rated current: 15A 24A
Contact resistance: 20m
Insulation resistance: 5000M/DC1000V
Withstanding voltage: AC 2000V/1 Min
Wire range: 22-14AWG 2.5mm²
Mechanical
Temp.Range: -30?120
MAX Soldering: +250,for 5 Sec.
Torque: 0.5Nm(4.5Lb.in)
Strip length: 4.5-5mm
- Place of Origin:
- China
- Brand:
- FullTang
- Unit Price:
- USD 0.18
- Price Terms:
- FOB Shenzhen
- Other Price Terms:
- Free Shipping
- Payment Terms:
- T/T
- Delivery Time:
- 4-7 days
- Min Order Quantity:
- 1000pcs
- Standard / Certificates:
- UL CE ROHS
- Keywords:
- pcb terminal blocks
