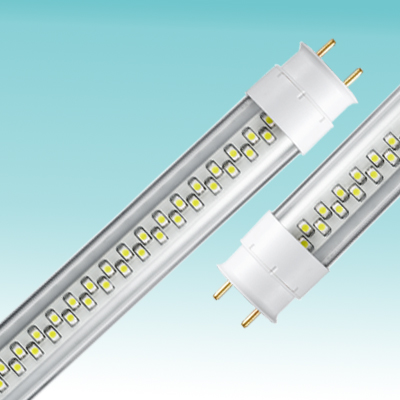

T8/t10 1500mm Led Tube Light

T8/t10 1500mm Led Tube Light, BDL-T8PA05-1524STF
Item Code / Model Number:
BDL-T8PA05-1524STF

T8/t10 1500mm Led Tube Light T8/t10 1500mm Led Tube Light
high luminous flux smd g13 t8/t10 1500mm led tube

Specifications:

Product No BDL-T8PA05-1524STF
Power 24W
Input Voltage AC180-265V
Power Factor >0.92
Luminous flux 2150lm
Color Temperature: 2700K-7000K
CRI >70
LED Quantity SMD3528/360pcs
Working Temperature -20~+45°C
Storage Temperature -30~+65°C
Housing: PC cover withaluminum board (Transparent)
Lifespan: 50,000h
Base: G13



Features:

1. Energy saving and environmental protection, more energy saving than traditional fluorescents, no heavy
metals and harmful gas.
2. System integration design.
3. Unique heat dissipation way and oversized area,lifespan could be over than 50,000 hours
4. Advanced package technology, high power LED and high luminous efficiency.
5. Color temperature is from 2700-7000K,univoltage is AC185-265V.
6. Constant current technology, quick start, no frequent flash
7. Easy installation, easy to use.
8. High power factor, low harmonic distortion.
9. Good weather fastness, have a thick skin to humidity and wide adapt to temperature.



Matters need attention:
1. Open the package, check whether the products are in good condition; If products are damaged , please
kindly keep the package and send details to our company timely; please don’t try to use the damaged products.
2. Voltage is AC180-265V, 50-60Hz,It will affect function and liftspan on the condtion that voltage is too high or
too low.
3. Do not install lamps inside combustible object. Any condition, lamps should not be covered by insulation
blanket or similar material and so on.
4. When install and replace tubes, must switch off power and insure all adapter connectors connected correctly
to make sure safety.
5. LED tubes without any dimming sticker, they can’t be used in dimmer place.
6. The applying locations of LED tube are indoor and waterproof place, they are IP20 and not used in outdoor
and in the rain.
7. When tubes work abnormally (extinguish, flashing), please check up the contacted properties of lamp holder
and lamp socket. And check if the power supply voltage is normal or not. If everything is normal, so you need to
replace new tubes.
8. Follow the user manual when you install LED tubes strictly. It is prohibited to use LED tubes before adjusting
old fixtures.
9. This product is installed by professional person; laypeople shall not dismantle or install it.
  • Place of Origin:
  • China
  • Brand:
  • Bdlay Led
  • Price Terms:
  • FOB Shenzhen
  • Payment Terms:
  • L/C;T/T;Cash
  • Payment Remarks:
  • Paypal, Western Union
  • Delivery Time:
  • 5-10 days
  • Min Order Quantity:
  • 10pcs
  • Standard / Certificates:
  • TUV, CE, ETL&cETL, SAA
  • Keywords:
  • light, led light, led tube
