FN Series Automatic Sink Seam Welding Machine
1.General Description
This Equipment is specially designed for welding the stainless steel sink bowl and sink board together.When it work,the workpiece turn around by the even speed,the worker hold and support it manually.
Adopted the Silver Bearing to make sure the best electric quality and save the energy.

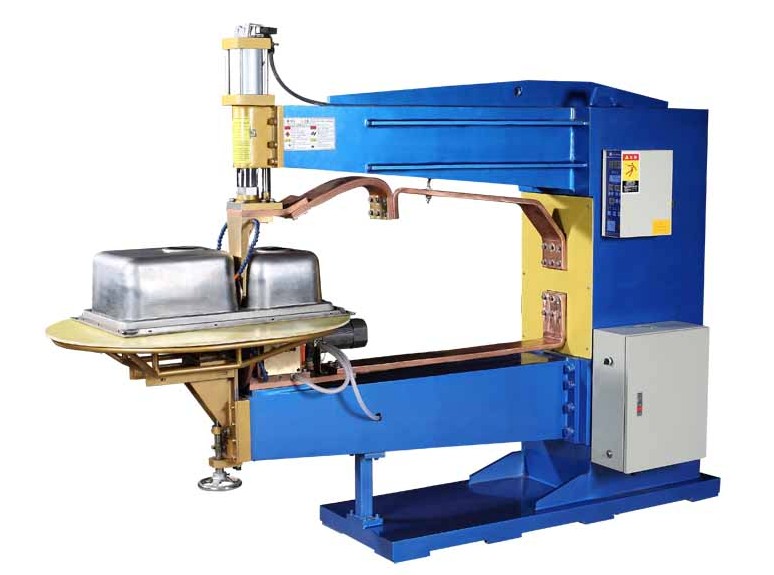

2.Sketch and Photo of the Machine

3.Machine Working Process and Step
Load the Sink Workpiece to the Fixing Jig of Working Table → Start the Machine→ The Welding Electrode Rollers and Sink Workpiece Start to Go Round and Round,at the same time the Workder Hold and Support it manually→ Welding Until Finish→ Automatic Back to the Original Position→Unload the Workpiece.
4.Main Parts List of the Machine
4.1 Air Cylinder and Pressure System;
4.2 Long Seam Welding Arm;
4.3 Motor Power System;
4.4 Seam Welding Electrode Up and Down Rollers;
4.5 Special Design Fixing Jig and Table;
4.6 Main Body of Machine;
4.7 Electric Controlling Box;
4.8 Seam Welding Transformer;

5.Main Technical Parameter of Standard Model Machine
5.1 Machine Dimension: L:1700mm×W:900mm×H:1900mm(Or designed specially basing on the sink workpiece);
5.2 Welding Length and Width of sink: 1300mm×600mm(Or designed specially basing on the sink workpiece);
5.3 Total Power: 100KW;
