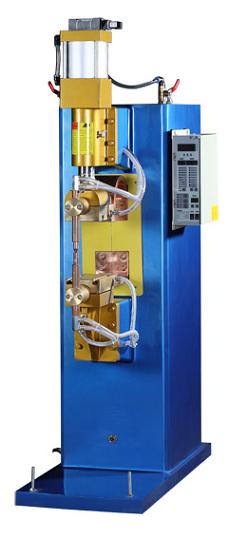

Dn-50kva Pneumatic Ac Spot & Projection Welders For Sink Positioning

Dn-50kva Pneumatic Ac Spot & Projection Welders For Sink Positioning
Item Code / Model Number:

Dn-50kva Pneumatic Ac Spot & Projection Welders For Sink Positioning Dn-50kva Pneumatic Ac Spot & Projection Welders For Sink Positioning
DN-50KVA Pneumatic AC Spot & Projection Welders for Sink Positioning

Integrated single tube design of the Air Cylinder guarantees fast action and high repeatability of operation
Parallel loops of cooling water in the machines improves performance at high duty cycles
All major spot welding functions, 15 weld schedules
Digital Weld Controller performs AVC, cycle time and current control with high level accuracy

 Item/Model Rated capacity Maximum short current Rated duty cycle Arm length Maximum compression Electrode stroke Cooling Water weight Welding capability
Low carbon steel
KVA A % mm N mm I/min kg mm
DN-50 50 19000 50 380 6280 60 6 350 1.5+1.5


Relative Machine:
Item Rated capacity Rated Primaryvoltage Ratedfreguency Max.Secondary Curent Rated duty cycle Arm length Maximum Force Electorode stroke Cooling Water flow Weight Electrode size
Model Electrode Head Electrode holding rod Electrode arm
KVA V Hz A % mm N mm L/min Kg (mm) (mm) (mm)
DN-25 25 380 50/60 17500 50 380 2500 60 6 300 16 20 45*200
DN-35 35 380 50/60 18500 50 380 4000 60 6 380 16 25 50*200
DN-50 50 380 50/60 20000 50 380 6280 60 6 430 16 25 50*200
DN-75 75 380 50/60 25000 50 380 6280 60 8 500 16 25 60*200
DN-100 100 380 50/60 30500 50 380 6280 60 8 600 16 25 60*200
DN-150 150 380 50/60 38500 50 380 6280 60 12 750 20 30 80*250
DN-200 200 380 50/60 43000 50 300 6280 60 12 800 20 30 80*250
DN-250 250 380 50/60 44000 50 300 6280 60 12 800 20 30 80*250
  • Place of Origin:
  • China
  • Payment Terms:
  • L/C;T/T;Cash
  • Keywords:
  • spot welder, welding machine, sink welder
