High Purity Nitrogen Generators

High Purity Nitrogen Generators

1.Simple operation
2.Long lifetime
3.99.9994 %
4.MOQ 1



High Purity Nitrogen Generators

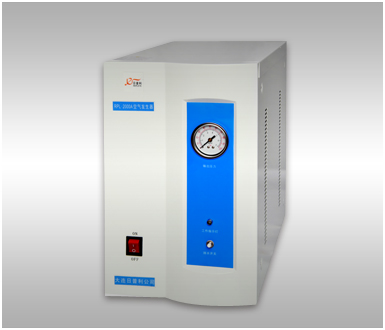

RPL-300N (500N), the first Chinese high purity nitrogen generator with a purity >99.9996%, employs brandnew technique to produce high purity nitrogen with a stable performance, which is comparable with imported instruments. It is fitted with a backflow protection to eliminate back flow.It can be used with various gas chromatograph equipments, as well as TCD, FID and ECD.



Technical parameters:




RPL–300N
RPL –500N

Nitrogen purity
99.9994 % (O2 relative content)

Outlet flow
0 - 300 ml / min
0 - 500 ml / min

Outlet pressure
0.4 Mpa

Operating Condition
power supply 220V 50HZ

Environment Requirements
10 - 40 °C relative humidity < 85 %

No significant dust or corrosive gas

Air inlet pressure
0.5 Mpa

Maximum power
80 W
100 W

Dimension
360 × 190 × 380 mm (L × W × H )

Weight
15 KGS
16 KGS




Characteristics:



1.It is easy to operate. All you need is to connect it with compressed air and to turn the power on to generate high purity nitrogen.



2.It can operate both continuously or intermittently.



3.The electrolytic seperation cell has a large electrolysis area, a low cell temperature and a long lifetime.



4.It is fitted with an effective backflow protection.



5.An automatic emptier working on starting up. A stable tracking output during operating. An automatic gas circuit shutter working when the power supply is failed.
