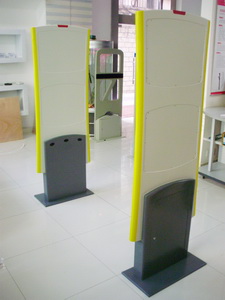

Tcpip Door Control Rfid Gate Device

EAS UHF RFID Gate For Asset Managent

UHF Security Gate “RRU-CH-AD” is a high performance security gate device with self-intellectual property. The series support fast tag(UHF ISO18000-6C, ISO18000-6B) anti-collision and read/write operations (including EAS function of NXP tag). Equipped with high performance main/auxiliary gate antenna, 3 line infrared motion detection sensor which can detect the direction for the tag and person, control board and standard RS232, RS485 serial communication ports and RJ45(TCP/IP) network port, the series are top choice for open and mass flow RFID applications, such as: Library Entrance Control, Access Control, Asset management, Attendance, etc.


Specifications:


Model No.
RRU-CH-AD

Tag Protocol:
EPC C1 Gen2(ISO18000-6C), ISO18000-6B standards.

Working

frequency:
865~868MHz, 902~928MHz (frequency can be customized)

RF Output Power
Maximum 30dbm(adjustable)

Read Range
1-3 meters

Interface
RS232,RS485,RJ45(TCP/IP) network interface, etc.

Work mode
FHSS or Fix Frequency transmission

Power supply.
220/50 (V/Hz)

Current
160 (mA)

Alarm
Light and buzzer

Direction Judgment
Built-in 3 line infrared motion detection sensor

Extend Function
NXP tag/label EAS function, Support plug-in camera, large screen display/television

to realize controlling and managing in a more intuitive way

Sizes:
170(H)*60(W)*15cm(T)

Housing
ABS/Metal

N.W
40KG

G.W
77KG

Operating Temperature
-10°C ~ +60°C

Storage Temperature
-25°C ~ +70°C




Top choice for open mass flow RFID applications, such as: Library Entrance Control, Access Control, Process Control, etc.
