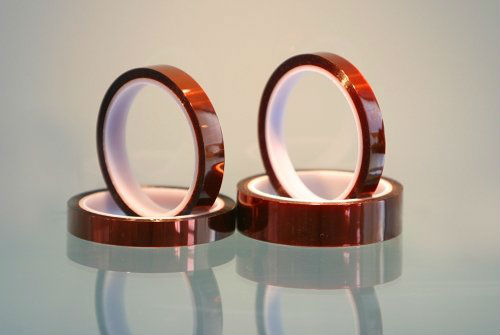

Kapton Tape

kapton tape, is with polyimide film as the basic carrier, and coated with imported pressure sensitive silicone adhesive. It can endure high temperature up to 260 within half an hour, and it also features like: electrical insulation, radiation resistance, solvement resistance etc. Its mostly applied for the motor insulation, gold finger protection of PCB during wave soldering etc. Without any residue after the tape is removed from the gold finger.
Items Datas
Backing Polyimide film
Adhesion Silicone
Color Amber
Thickness (mm) 0.06
Length (m) 33M
Tensile Strength (N/25mm) ≥140
Elongation (%) ≥40
Breakdown strength (N/25mm) ≥150
Voltage resistance (KV) 6
Adhesion (N/25mm) 6
Temperature Resistance (c) 260
