Hd 16ch Full D1 H264 Hdmi 3g Module Day Night Vision Audio Video Security Network Dvr

HD 16ch Full D1 H264 HDMI 3G module Wireless day/night vision audio video security network DVR player
Jovision Technology Co.,Ltd,sales manager William xu,wa(a)jovision.com

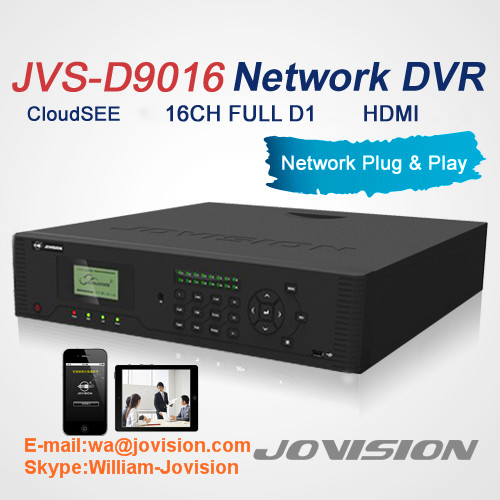

JVS-D9000-SZ Series Network DVRs
Specification:
Model JVS-D9016-SZ
Video&Audio Input Video 16ch BNC
Audio 16ch RCA
Video&Audio Output VGA Output 1ch
CVBS Output 1ch,BNC interface,Resolution:1024*768/1280*1024/1920*1080
HDMI Output 1ch
Video Output 1ch,RCA interface
Layout Previewing Layout 1/2/4/8/9/16
Playback 16ch D1
Utmost Remote Connected channels 32ch
Video Compression Compression Standard H.264
Compression 16ch Compression simultaneously, D1/CIF optional
Compression fps PAL:25fps NTSC:30fps
Compression Stream Main Stream: D1(113-1365kbps)/CIF(113-1137kbps)
Audio Coding Coding Standard LPCM
Two-way Talk 1ch,RCA Interface
Video&Audio Pure Video/ Video&Audio
Network Minor Stream Minor Stream: Closed/QCIF(68-682kbps)/CIF(68-682kbps)
HDD Interface Can add 6 HDD,SATA Interface
Capacity Upto 3TB for each HDD
Port USB port 2 USB 2.0 ports
Network Interface 1 RJ45 10M/100M Ethernet
Serial Port 1 RS-485
Alarm Input 8ch
Alarm Output 4ch
Other Memory 1GB
Control USB Mouse /Front Panel/IR remote Control
Power Built-in ATX power
Power Consumption less than30W(without HDD)
Working Environment Tem:-10-55degree Celsius
Chassis (W×D×H) Standard 2U chassis, 445mm×430mm×90mm
