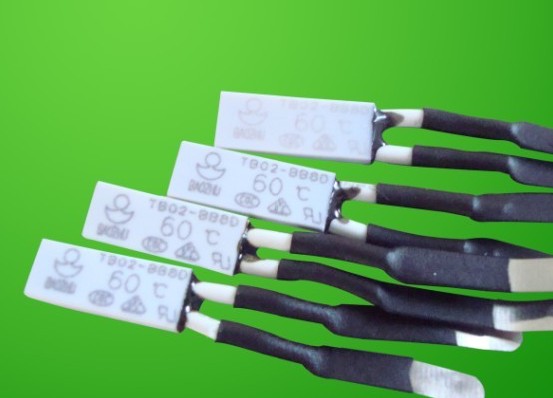

Small Size Thermal Protectors Thermostats For Heating Appliances

KEY BENEFITS Miniature size Low resistance25mΩ Positive make and break with snap-action disc Repeatable temperature performance over life Gasketed case suitable for most impregnation processes Current and temperature sensitivity for maximum design flexibility and application Wide selection of leads Substitute SENSATA 4MM/6MM,PEPI and ISUZU IP405/505 series APPLICATION Battery packs Shaded pole motors AC motor and pump Fluorescent lighting ballasts Transformers Heating appliances Portable power tools Key Specifications/Special Features: Opening temperature:30-155 degrees Bimetal disc Low resistance Case: Metallic case/ Plastic case Protection type: 1.Temperature protection 2. Current&Temperature dual protection Contact type: 1. Normally open 2. Normally closed Maximum voltage: 250VAC 40VDC Lead Wire: 3266——AWG22# 3135——AWG24# or Nickel strip normally Certifications: UL, VDE, TUV, CB, CQC Dimension: TB02-BB8D 15*5.4*2.4MM TB02-BB1D 11.5*5.0*2.4 MM TB02-BB7D 11*5.4*2.4MM
