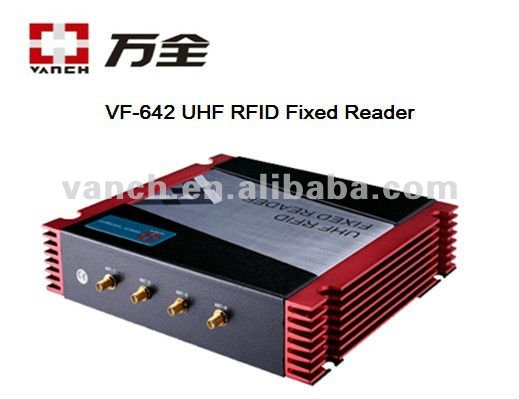

Vanch Vf-642 Uhf Rfid Multiports Reader

Detailed Product Description

VF-642 UHF RFID Multiports Reader
1:high quality fixed barcode RFID reader
2:Impinj chip IndyR2000


Vanch VF-642 UHF RFID Multiports Reader
1:high quality fixed barcode RFID reader
2:Impinj chip IndyR2000


Introduction

Based on the development of independent intellectual property rights, the reader adapt to the global frequency band setting.
Adopt high-performance Impinj UHF reader chip IndyR2000 to achieve the best Intensive reader mode, the maximum read speed and optimum read ranges.
Application: warehousing and logistics supply chain, fixed asset management, transportation and vehicle management, manufacturing, etc.

Features
1, Adopt Impinj UHF reader chip and TI ARM embedded processing chips to achieve high-speed reading and data fast operation
2, Full support to meet the EPC global UHF Class1 Gen2 / ISO 18000-6C / ISO18000-6B electronic tag standard
3, Operating frequency is between 865-868MHz / 902- 928MHZ (can be adjusted according to different countries or regions)
4, RS232, RS485 and TCP / IP communication
5, Support 1, 2, 4 external SMA antenna connections
6, Output power reach 32dbm, it is adjustable. Support auto mode, command mode and trigger mode.
7, Reading buzzer and LED status indication; support online upgrade for hardware by communication port.
8, Reader supply multi I/O input output connectors, convenient for device to integrate and application
9, highly reliable design of industrial structure to meet the requirement of work environment


Specification

Model
VF-642

Performance Index
Frequency range
865-868MHZ,902-928MHZ(can be customized)
Frequency modulation
FHSS or fixed-frequency, can be set by software
RF output
+10.0 to +32.5 dBm;50 ohm load.
The number of antennas
4 SMA antenna connectors
Communication interface
10M/100MAdaptive Ethernet,RS232,RS485,Wiegand26/34 interface
Communication rate
Serial rate 9600~115200bps,RJ45 is 10Mbps
Secure firmware upgrade
The upgrade mechanism can be extended
input / output (GPIO)
2 inputs, 1 output
Application software
Supply API SDK and VC and C# application routines
Tag Operation Performance
Reading distance
8dbiAntenna configuration, typical read range: 3 to 20 m (depends on tag)
Protocol
EPC global UHF Class 1 Gen 2 / ISO 18000-6C
Maximum receiver sensitivity
-82 dBm;Maximum return loss: 10 DBm
Mechanical electrical performance
Dimension
220 (L) * 200 (W) * 48 (H) mm
Power
With 220V AC input, the output of +12 V/3A DC power converter
Weight
<2KG
Humidity
5% to 95%, Non-condensing
IP rating
IEC IP51
Operating Temp.
-20 ºC to +60 ºC
Storage Temp.
-40°C to 80°C
