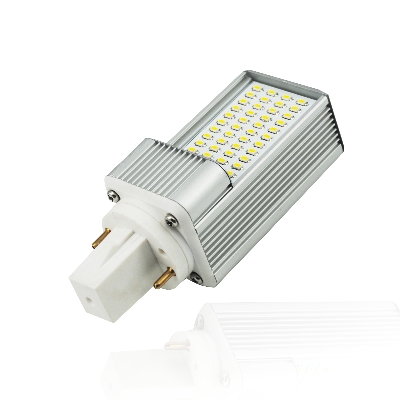

5w G24 Led Light

With special design and mould, our 5W G24 LED Plug lights could be ideal replacement of 16W CFL PLC bulbs fluorescent.
Features:
1) Aluminum housing, oxidized treatment, good heat conduction and excellent heat-dissipation;
2) With high efficiency heat inductive aluminum printed circuit board for LED. It could help to dissipate the heat faster.
3) Easier retrofit with integrated driver;
4) With Isolated driver (PF>0.9), CE/ROHS compliant;
5) The constant current IC allows for 80 to prevent potential risk and support to AC 400V shock.
6) Anti-fire and Anti-High voltage ABS material for lighting base;.
7) The socket is made to be adjustable within 270 degree by itself;
8) Up to 60% energy saving if compared to conventional CFL PLC bulbs;
9) Solid state light source, high shock/vibration resistant;
10) Green and eco-friendly LED light source without any mercury;
Specification:
Electrical Specifications:
Operation Voltage: AC 100V-250V
Power Consumption: 5W±10%
Power Factor: >0.9
Light Source: 48Pcs 3014 super bright LED
Operation Temperature: -20--+40.

Physical Specifications:
Base: G24d-1, G24d-2, G24d-3, G24q-1, G24q-2, G24q-3, E27/E26
Dimension: L93*H35mm
Housing: Aluminum and ABS anti-fire
Work environment: Indoor use, applicable for dry environment
Optical Specifications:
Color: White, Pure White, Warm White
Lumens: 460lm±10%
CRI: >75
Beam Angle: >120 degree
Color Temperature: 5500-6500K, 4000-4500K, 2850-3200K,
Warning:
No ballast is needed. Any ballast should be removed.
The lamp is not water proof.
Do not touch the aluminum or any part while working.
The product cant be discarded into garbage can directly; necessary measure should be done for full recycling.
All installation, maintenance, dismantling should be done by licensed technician.

Application:
It is used to replace 16W CFL in down lighting fixtures. It could be used in 4 inch or bigger down light fixture (100 mm Diameter or bigger).
