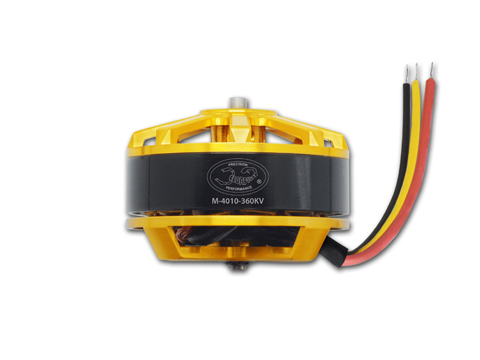

The M-40 Series motor! This motor specially made for multi-copter. This motor provides all the power that you can use, while still maintaining excellent efficiency and higher power than any competition, perfectly balanced rotor.

It suitable for two types of propeller which has space 12mm screw hole and 6mm & 8mm inner diameter.

Specifications

Stator Diameter ...............................40 mm(1.57 in)
Stator Thickness ..............................10 mm(0.39 in)
No.of stator Arms ................................................12
No.of stator Poles ...............................................14
Motor Wind ...............................................11 Turn Y
Motor Wire ................................12-Strand 0.25 mm
Motor Kv .........................................360KV RPM/Volt
NO-Load Current(IO/10V) .......................0.34 Amps
Motor Resistance(RM) ...........................0.152 Ohms
Max Continuous Current .............................30 Amps
Max Continuous Power ..........................1110 Watts
Weight ......................................152 Grams (4.63 oz)
Outside Diameter ..........................48.8 mm (1.92 in)
Shaft Diameter ..............................3.98 mm (0.16 in)
Body Length ................................32.17 mm (1.27 in)
Ovrall Shaft Length .......................36.5 mm (1.44 in)
Max Lipo Cell ......................................................10s
Peak Current ...........................42 Amps (2 seconds)
Peal Power ..........................1554 Watts (2 seconds)
Motor Timing ...................................................5deg
Drive Frequency ..............................................8kHz

Weight including packaging

250g

Data Chart

View Scorpion M-4010-360KV Data Chart

Full Dimension

View Scorpion M-4010-360KV Full Dimension
