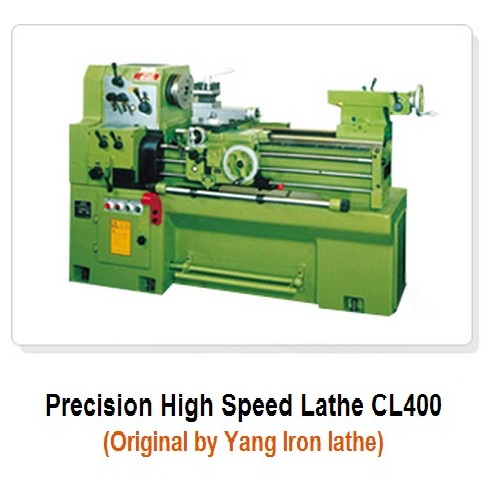

Precision High Speed Lathe--CL400

Precision High Speed Lathe CL400:

Swing over bed Phi-400,
Swing over cross slide Phi 245,
Swing over gap Phi 585
Width of gap from face plate A1-5:203;D1-5:188

Spindle bore Phi 45,
Spindle nose ASA A1-5(ASA D1-5 option)
Taper of spindle bore: 1/30 TAPER
Taper of center: M.T. NO.3
Numbers of spindle speed 6
Spindle motor 3.75kw(5HP)4P

TOOL SLIDE--Compound rest 125
Cross slide travel 215
TAILSTOCK--Diameter of quill Phi 52
Quill travel 140

Please visit our website at http://www.fenghsing.tw for more information about our Precision High Speed Lathe.
Welcome Distributors and Re-Sellers.
Price, MOQ, deliver time are for reference only, please contact us for correct quotation and product details.
