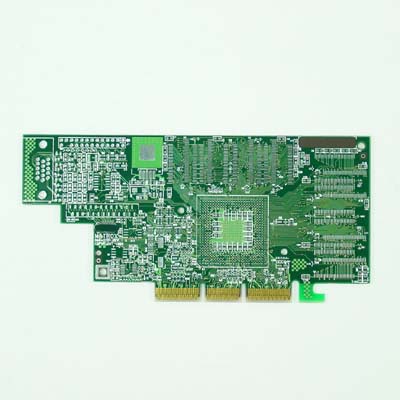

PCB
PCBItem Code / Model Number:
PCB
Part Number
Number Of Layers - 2 to 12
Board Size - 06.38 x 04.200
Board Thickness - .062
Board Finish Type - SMOBC
Material - FR-4
Hole Count(Approx) - 2257
Tool Count -11
Smallest Hole Size - .012
SMT Side - 2
Min Pitch(Approx) -.019
SMT Pads (Approx) - 2200
Minimum Line Width - .005
Minimum Spacing - .005
Solder Mask Type - LPI
Solder Mask Sides - Both
Solder Mask Color - Green
Legend / Comp Side - White
Legend / Sold Side - White
Minimum Copper Wt. - 1.0
# Of GOLD Fingers - YES
Slots / Cutouts -
Other Information - Need 2UP/pnl..
Impedance Controll 60 ohms
Number Of Layers - 2 to 12
Board Size - 06.38 x 04.200
Board Thickness - .062
Board Finish Type - SMOBC
Material - FR-4
Hole Count(Approx) - 2257
Tool Count -11
Smallest Hole Size - .012
SMT Side - 2
Min Pitch(Approx) -.019
SMT Pads (Approx) - 2200
Minimum Line Width - .005
Minimum Spacing - .005
Solder Mask Type - LPI
Solder Mask Sides - Both
Solder Mask Color - Green
Legend / Comp Side - White
Legend / Sold Side - White
Minimum Copper Wt. - 1.0
# Of GOLD Fingers - YES
Slots / Cutouts -
Other Information - Need 2UP/pnl..
Impedance Controll 60 ohms
