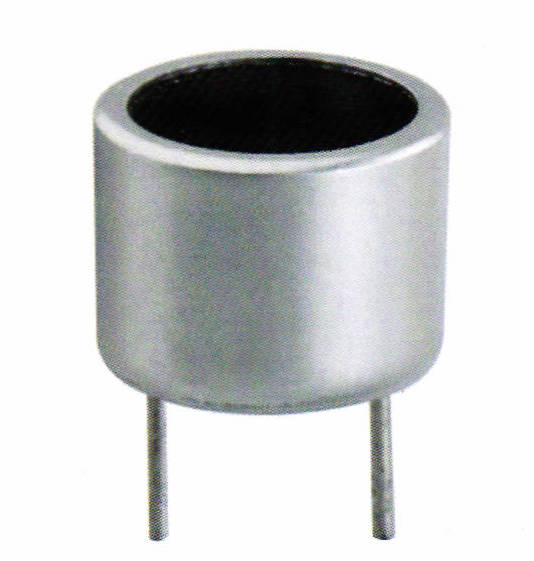

Ultrasonic Sensor Used In Scanner, Parking System, Automatic Door, Industry Control System Etc
Ultrasonic Sensor Used In Scanner, Parking System, Automatic Door, Industry Control System EtcItem Code / Model Number:
Ultrasonic Sensor Used In Scanner, Parking System, Automatic Door, Industry Control System Etc
Product features:
*Open structure and dual use
*Compact and light weight
*High sensitivity and sound pressure
*Less power consumption
*High reliability
ELECTRICAL AND MECHANICAL CHARACTERISTICS
Model: HPU1640IOAH12G, dia: 16mm, H: 12mm
Using Method: Dual use
Frequency: 40±1KHz
S.P.L: min. 110dB (40.0KHz) 0dB=0.0002μ bar
Sensitivity: min.-65dB/V/μ bar
Capacitance: 2500pF±25% at 1KHz
Directivity: 50 degree
Operating Temp.: -35~+85 centigrade
Storage Temp.: -35~+85 centigrade
Detectable Range: 0.7~18m
Housing Material: Aluminum, ABS option
Email for pricing and detailed requirements.
*Open structure and dual use
*Compact and light weight
*High sensitivity and sound pressure
*Less power consumption
*High reliability
ELECTRICAL AND MECHANICAL CHARACTERISTICS
Model: HPU1640IOAH12G, dia: 16mm, H: 12mm
Using Method: Dual use
Frequency: 40±1KHz
S.P.L: min. 110dB (40.0KHz) 0dB=0.0002μ bar
Sensitivity: min.-65dB/V/μ bar
Capacitance: 2500pF±25% at 1KHz
Directivity: 50 degree
Operating Temp.: -35~+85 centigrade
Storage Temp.: -35~+85 centigrade
Detectable Range: 0.7~18m
Housing Material: Aluminum, ABS option
Email for pricing and detailed requirements.
- Place of Origin:
- China
- Unit Price:
- USD 0.5~2
- Price Terms:
- FOB China Mainland
- Payment Terms:
- T/T
- Delivery Time:
- 35 days
- Min Order Quantity:
- 1000pcs
- Standard / Certificates:
- RoHs
- Keywords:
- sensor, parking sensor, ultrasonic sensor
