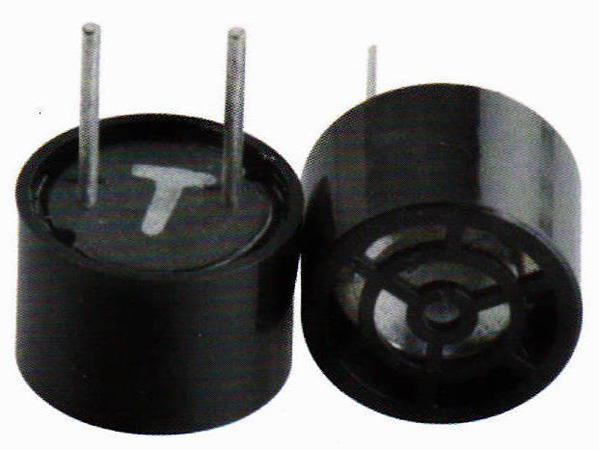

Ultrasonic Sensor For Short Distance Test, Industry Automatic Control, Smog Control System, Parking
Ultrasonic Sensor For Short Distance Test, Industry Automatic Control, Smog Control System, ParkingContinuous Selling Item
Ultrasonic Sensor For Short Distance Test, Industry Automatic Control, Smog Control System, Parking
Product Features:
*Open structure and fission
*Compact and light weight
*High sensitivity and sound pressure
*Less power consumption
*High reliability
ELECTRICAL AND MECHANICAL CHARACTERISTIC
Type: HPU1640TOAH12, dia: 16mm, H: 12mm
Using Method: Transmitter
Frequency: 40±1KHz
S.P.L: min. 110dB (10v/30cm)
Type: HPU1640ROAH12, dia: 16mm, H: 12mm
Using Method: Receiver
Frequency: 39±1KHz
Sensitivity: min.-65dB/V/μ bar
Capacitance: 2500pF±25% at 1KHz
Directivity: 50 degree
Operating Temp.: -35~+85 centigrade
Storage Temp.: -35~+85 centigrade
Detectable Range: 0.7~18m
Housing Material: Aluminum, ABS option
Email for pricing and detailed requirements.
*Open structure and fission
*Compact and light weight
*High sensitivity and sound pressure
*Less power consumption
*High reliability
ELECTRICAL AND MECHANICAL CHARACTERISTIC
Type: HPU1640TOAH12, dia: 16mm, H: 12mm
Using Method: Transmitter
Frequency: 40±1KHz
S.P.L: min. 110dB (10v/30cm)
Type: HPU1640ROAH12, dia: 16mm, H: 12mm
Using Method: Receiver
Frequency: 39±1KHz
Sensitivity: min.-65dB/V/μ bar
Capacitance: 2500pF±25% at 1KHz
Directivity: 50 degree
Operating Temp.: -35~+85 centigrade
Storage Temp.: -35~+85 centigrade
Detectable Range: 0.7~18m
Housing Material: Aluminum, ABS option
Email for pricing and detailed requirements.
- Place of Origin:
- China
- Unit Price:
- USD 0.5-2
- Port:
- FOB Shanghai
- Packing:
- Carton lined with foam tray: 100pcs per foam tray, 30 foam tray per carton, 3000pcs per carton in total, Carton size: 500x270x260mm
- Payment Terms:
- ;T/T
- Delivery Time:
- 35
- Min Order Quantity:
- 3000pcs
- Standard / Certificates:
- ROHS
