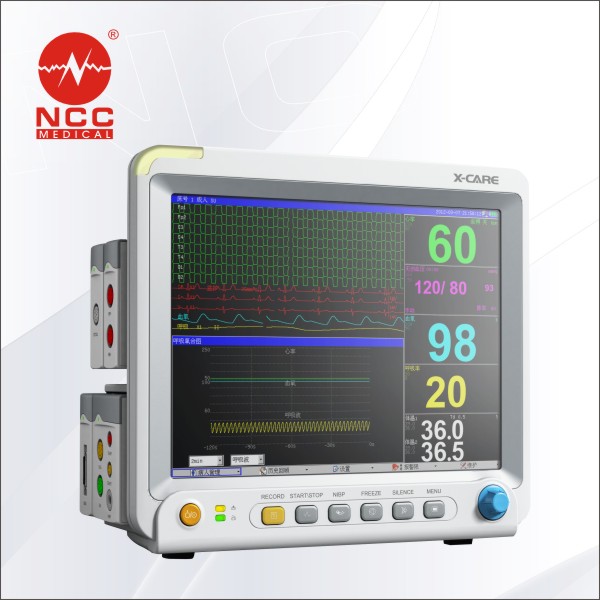

portable modular multi-parameter patient monitor

15" modular Multipara patient monitor



Features and advantages

1. Plug-in modular design support hot plug with free combination, convenient to use, maintain and upgrade

2. Professional EEG monitoring to make it more perfect

3. 15 inch TFT LCD, Resolution: 1280*1024

4. Standard six-parameter module: ECG, PR, NIBP, SpO2, RESP and TEMP

5. Powerful software functions, to show full range of information reports

6. 3 level intelligent alarms: sound, light and voice alert, volume adjustable

7. Compatible with central monitoring system

8. Optional modules: EEG/PSG, EtCO2, IBP




Technical parameter


ECG

Lead type: 3/5 leads electric cable

Input: 3 leads: RA, LA, LL (Lead method: I, II, III)
5 leads: RA, LA, LL, RL, V (Lead method: I, II, III, aVR, aVL, aVF, V)

Heart rate range: 15~300bpm (adult), 15~350bpm (child & neonate)

Accuracy: ±1bpm or ±1%, whichever is bigger

ST detection: Range: -2.0mV~ +2.0mV, Accuracy: -0.8 mV~ +0.8mV

Arrhythmia analysis: available


NIBP (Noninvasive blood pressure)

Method: Pulse wave oscillation

Operation mode: Manual/Automatic/Continuous

Time interval (Automatic):1min, 2mins, 3mins, 4mins, 5mins, 10mins, 15mins, 30mins, 60mins, 90mins, 2hours, 3hours, 4hours, 8hours

Time interval (Continuous): 5mins

Range: Adult: Systolic blood pressure: 40~280mmHg
Diastolic blood pressure: 10~220mmHg
Mean pressure: 20~240mmHg
Child: Systolic blood pressure: 40~220mmHg
Diastolic blood pressure: 10~160mmHg
Mean pressure: 20~170mmHg
Neonate: Systolic blood pressure: 40~135mmHg
Diastolic blood pressure: 10~100mmHg
Mean pressure: 20~110mmHg



SpO2

Range: 0~100%

Resolution: 1%

Accuracy: ±1% (70~100%), ±2% (40%~69%), not defined (<39%)


Respiration

Method: RA-LL impedance

Range of respiratory impedance: 0.3~3Ω

Respiration rate:7~120BrPM (adult), 7~150BrPM (child & neonate)


Temperature

Sensor type: 10K series, 2.25K series

Channels: dual channels

Range: 0~50°C

Accuracy: ±0.1°C
