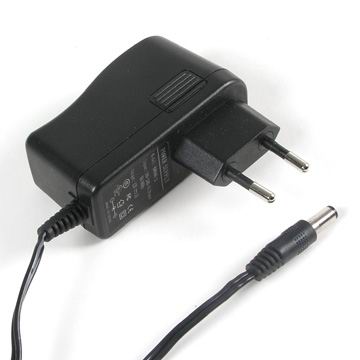

Sell Dc12v1a Cctv Power Adapter
Sell Dc12v1a Cctv Power AdapterContinuous Selling Item
Sell Dc12v1a Cctv Power Adapter
Features: DC6W output AC/DC wallmount adapter High price-effective,reliability with plastic crust Built in over voltage,over current and short circuit protection CE, FCC, CCC 1) Input: a) AC100V-240V b) Frequency: 50/60Hz 0.2A c) Line regulation range: ±0.5max. e) Start up current: cold start, 40A/230VAC 2) Output: DC6W a) Line regulation range: ±0.5% max. b) Ripple and noise (mVp-p): 1% of output voltage c) Adjustable range of output voltage: +5%, -3% d) Start-up time: ≤1s (AC input 240V and Io=100%) e) Hold-up time: ≥20ms (AC input 240V and Io=100%) 3) Protection: a) Over loading protection: 115%-150% of rated power, when it happened, the power shuts down automatically; when trouble removed the power recovers itself. b) Over voltage protection: 130%-150% of rated voltage c) Short circuit protection 4) Insulation Intensity Input---output: 3000V/10mA, 60s 5) Insulation resistance Input---output: ≥50m, DC500VAC 6) Environmental requirements: a) Operating temperature: 0---40°C b) Operating humidity: 10-90% RH (no freezing dew) c) Storage temperature: -20----85°C d) Storage humidity: 10-95% RH (no freezing dew) 7) Elevation: 3000m 8) Dimensions (L x W x H): 74 x 46 x 28mm
- Place of Origin:
- China
- Unit Price:
- USD 2.3
- Port:
- FOB Shenzhen
- Payment Terms:
- ;T/T
- Delivery Time:
- 20
- Min Order Quantity:
- 500pcs
- Standard / Certificates:
- CE,UL ,FCC
