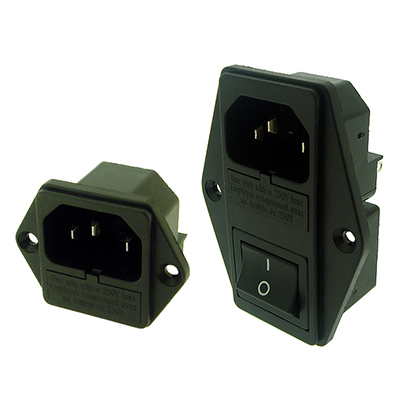

3 Pins Inlet Socket 3545 Series
3 Pins Inlet Socket 3545 Series, 3545 SeriesItem Code / Model Number:
3545 Series
3 Pins Inlet Socket 3545 Series
Applications: home appliance and consumer electrical product
Standard: IEC 60320/C14 and IEC 60127
Rating of switch: 10A, 250V AC
Rating of socket: 10A, 250V AC
Rating of fuse holder: 10A/2.5W 250V AC (maximum)
Fuse type: Ø5.2 x 20mm tube fuse
Circuit: On-Off
Terminal: solder
Dielectric strength: withstand 2,000Vrms 50/60Hz for 1 min between each terminal
Color: black
With C-RU-US, VDE, ENEC, CCC marks
With RoHS compliance
Packaging: bulk packing, special quantity and do-it-yourself packages are available
Please contact us for more details
Standard: IEC 60320/C14 and IEC 60127
Rating of switch: 10A, 250V AC
Rating of socket: 10A, 250V AC
Rating of fuse holder: 10A/2.5W 250V AC (maximum)
Fuse type: Ø5.2 x 20mm tube fuse
Circuit: On-Off
Terminal: solder
Dielectric strength: withstand 2,000Vrms 50/60Hz for 1 min between each terminal
Color: black
With C-RU-US, VDE, ENEC, CCC marks
With RoHS compliance
Packaging: bulk packing, special quantity and do-it-yourself packages are available
Please contact us for more details
