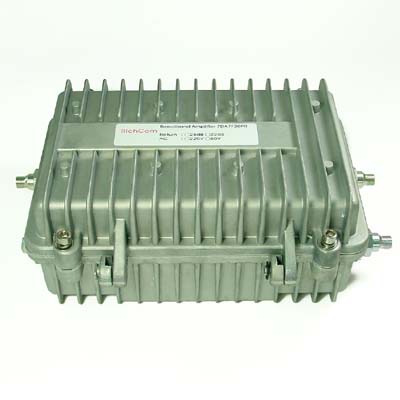

7F30PA Bi-Directional Trunk Amplifier(With AGC Function)
7F30PA Bi-Directional Trunk Amplifier(With AGC Function)Item Code / Model Number:
7F30PA Bi-Directional Trunk Amplifier(With AGC Function)
- Suitable For CATV or Broadband Networks as Trunk Amplifier or Extension Amplifier
- Using Double-Hybrid Designs For Forward Direction, Independent Hybrid Designs For Return Direction
- Use Power-Multiplication Hybrid For Amplification
- Built-In AGC(Automatic Gain Control) Function Can Effectively Compensate the Output Level By Temperature Change or Any Other Factors Affect The System
- High Efficient R-Type Transformer.(Or Use High Efficient Switching Power Supply)
- Bandwidth-Forward 47-750Mhz, Reverse 5-30Mhz, or According to Customers' Specifications
- Can Select 1-Way or 2-Way RF Output
- 60V Power and One Way Power Interface
- Weatherproof, Optimal Heat Dissipation and High Screen Factor
- AC 220V or AC 60V Power Supply is Available
- 220V AC Power Supply With Surge Protection
