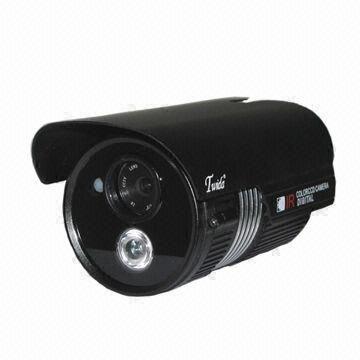

1/3-inch Sony Ccd Water-resistant Ir Camera, 600tvl

TWD-IAT002-600

1. Image sensor: 1/3-inch Sony Color Super HAD CCD II
2. Horizontal resolution:
3. Color: 600TV Lines, B/W: 650TV Lines
4. Signal system: PAL/NTSC
5. Picture pixels: PAL: 795(H) x 596(V), NTSC: 811(H) x 508(V)
6. LED N0.: One piece of 3rd array LED
7. Ranging distance: 30 to 40m
8. Infrared wavelength: 850nm
9. Sync system: Internal synchronization
10. S/N ratio: > 52dB
11. Lens: 6/8/12mm big fixed lens
12. Electronic shutter:
13. PAL: 1/50 to 1/1,00,000 seconds
NTSC: 1/60 to 1/1,00,000 seconds
14. Gamma correction: r=0.45
15. OSD menu: yes
16. Communication mode:
17. RS485 control, Pelco-D/P protocol
18. White balance: Auto (ATW1, ATW2, AWC-SET and manual)
19. BLC: ON/OFF (2AREA), HLC
20. AGC: High, Medium and Low (6 to 40dB)
21. Image function: Digital WDR
22. Noise reduction: 2D-DNR
23. D/N mode: Auto, Day, Night
24. Minimum illumination: Day: 0.1 lux/F2.0, Night: 0.001 lux/F2.0, 0 lux (IR ON)
25. Video output: 1.0Vp-p, 75Ω
26. Power supply: 12V DC ± 20 %
27. Dual power DC12V / AC24V is optional
28. Operation temperature: -10 to +50 degrees Celsius
29. Dimensions: 90 x 180mm
30. Case: IP66-rated metal case with anti-reflection glass
