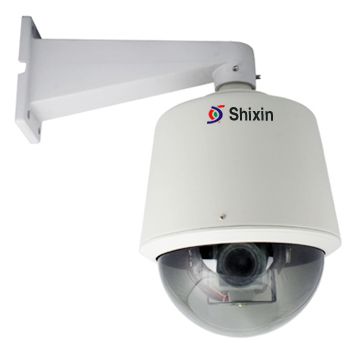

Waterproof H. 264 27x Optical Zoom Outdoor Speed Dome Ip Ptz Camera (ip-510h)

Serial no. Type Specification
27X all-in-one camera Image Sensor 1/4 SONY CCD, 420TVL
Focus 3.2 - 86.4mm
Min. illumination 0.1LUX / F1.2
Video Compressed format H. 264
Resolution D1(720× 576) half-D1(576× 354) CIF(352× 288) QCIF(176× 144)
Max frames per second 30fps@D1(NTSC)
25fps@D1(PAL)
Audio Audio encoding format G. 711 ADPCM
Software WEB IE Browser IE 6.0 or higher
Security Password protection, 3 levels visitors
Hardware CPU 32 Bit ARM9 RISC Core
Operate System Embedded eCos system
DDR 256M
Flash memory 32M
Internet Net port 10/100M Ethernet port (RJ45)
Net protocol TCP/IP. UDP. HTTP. DHCP. PPPoE. FTP. UPNP. DDNS. SMTP. NTP. TFTP
Outside ports GPIO port 1ch Input alarm, 1ch Output alarm
RS-485 Support
Video port 1ch output video(Multiple video format NTSC/PAL)
Audio port 1ch input audio
PTZ Rotation angle Pan: 355° , Tilt: 180° auto rotation
Rotation speed Pan: 5-30° /s Tilt: 7.5-30° /s
Settings Built-in decoder board and protocol, no need to dial code again which means you can use directly
Preset You can setup 64 presets
Preset Line 4lines, each line can set 16 presets
Function OSD support
DDNS Have professional Viewipcam. net and many other international famous server for your choosing
User management Administrator, common user, anonymous user. (Max. viewer: 20)
video adjustment brightness, contrast and saturation
Bandwidth By adjusting the compression, frame and resolution, it can be used to different bandwidth
Motion detection Motion detection alarm can send pictures to the appointed Email or send AV video to appointed FTP. You can setup the alarm time and area as you like
General Power supply Input AC 100-220 V 50/60Hz
Output DC 12V/2000mA
Work environment Temperature: -10° C- 55° C(Automatic-controlled temperature function is optional) Humidity: 0% - 80%RHG
Power 14.4W
Dimension 335mm(L) X300mm(W) X410mm(H)
Weight 3.51Kg
