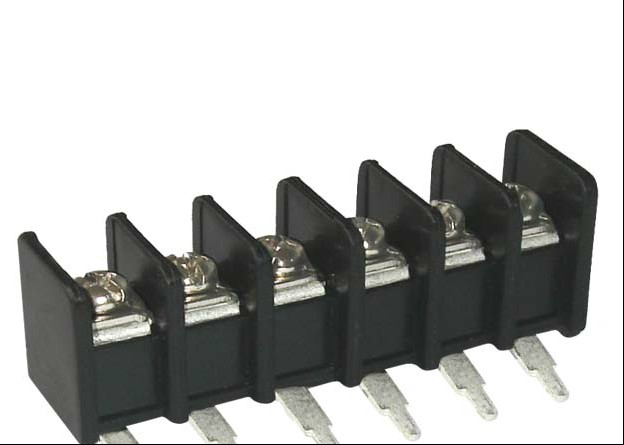

Barrier Terminal Block (TB952-00V)
Barrier Terminal Block (TB952-00V), TB952-00VItem Code / Model Number:
TB952-00V
Barrier Terminal Block (TB952-00V)
Barrier terminal blocks also known as America terminal blocks, PCB screw terminal blocks, terminal blocks. Below is the technical information for review, if you need any more information, please feel free to contact us, our SCED sales team will reply you as soon as possible.
Pitch: 9.525 mm
Wire range: 22-12 AWG
Torque: 13 lbf· In
Voltage Rating: 300V
Current Rating: 20A
Housing: PBT(UL-94V-0)
Screw: M4, Steel, Nickel Plated
Solder Pin: Brass, Tin Plated
Pitch: 9.525 mm
Wire range: 22-12 AWG
Torque: 13 lbf· In
Voltage Rating: 300V
Current Rating: 20A
Housing: PBT(UL-94V-0)
Screw: M4, Steel, Nickel Plated
Solder Pin: Brass, Tin Plated
- Place of Origin:
- China
- Brand:
- SCED
- Packing:
- Standard Export Carton
- Payment Terms:
- L/C;T/T
- Delivery Time:
- 14-35 days
- Min Order Quantity:
- 1000/piece
- Standard / Certificates:
- UL, CE, CQC, RoHS, SGS
- Keywords:
- terminal blcok, terminal blocks, connectors
