Hydraulic Hose Sae R1at/wire Braid Hydraulic Hose

wire braid hydraulic hose
Hydraulic hose SAE R1AT
Model:
Category: SAE 100R1AT
Product Name: SAE 100R1AT
Product Details:

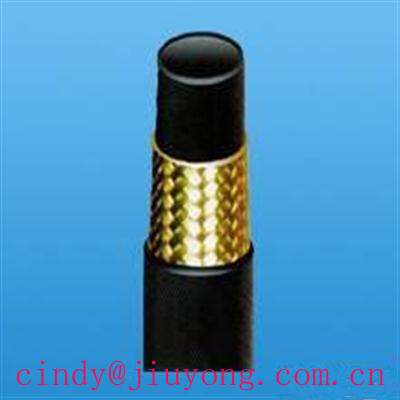

Wire Braid Hydraulic Hose: SAE 100 R1AT
Tube: Oil resistant synthetic rubber
Reinforcement: one high tensile steel wire braid
Cover: Abrasion and weather resistant synthetic rubber
Temperature range: -40 ℃ to +100 ℃
Max operation temperature +125℃
specification:
part In Max.Working pressure Min.Bend Radius Min..burst pressure Weight(ibs/foot)
psi mpa in mm psi mpa
SAE100R1 AT DIN/EN1SN 3/16" 3630 25 3.5 89 14520 100.1 0.12
1/4" 3270 22.5 4 102 13080 90.2 0.15
5/16" 3120 21.5 4.5 114 12480 86 0.17
3/8" 2615 18 5 127 10460 72.1 0.22
1/2" 2320 16 7 178 9280 64 0.28
5/8" 1890 13 8 203 7560 52.1 0.33
3/4" 1530 10.5 9.5 241 6120 42.2 0.41
1" 1280 8.8 12 305 5120 35.3 0.62
1 1/4" 920 6.3 16.5 419 3680 25.4 0.8368
1 1/2" 730 5 20 508 2920 20.1 1.0921
2" 580 4 25 635 2320 16 1.3413
All of our products use high quality 45# carbon steel and stainless steel to guarantee our products' high quality. And all of our machines are advanced in the world to guarantee we can supply good products.
