LVT-PL6060-*-C01-*
LVT-PL6060-*-C01-*Item Code / Model Number:
LVT-PL6060-*-C01-*

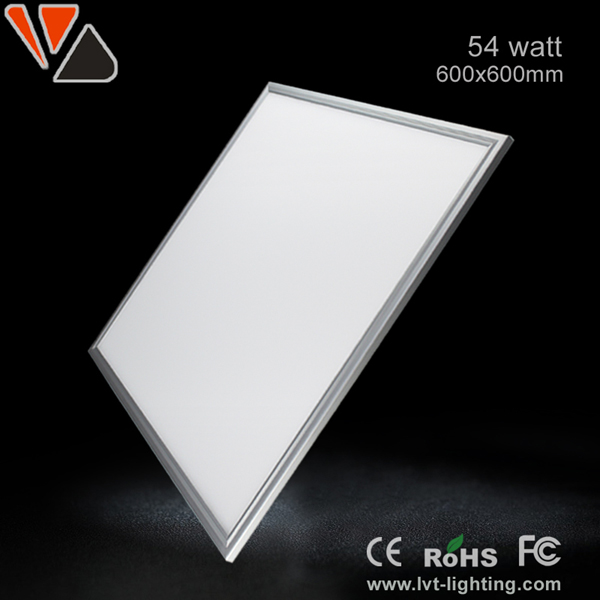

Model No. LVT-PL6060-*-C01-*
Size: 595x595x12mm (600x600x12mm)
Power: 27W / 36W / 42W / 48W / 54W / 72W
Luminous Flux: 2100lm ( 27W ) 2700lm ( 36W ) 3200lm ( 42W )
3600lm ( 48W ) 4100lm ( 54W ) 5400lm ( 72W ) 5400lm ( 72W )
Input Voltage: AC 100-277V (UL certification) AC100-240V (CE certification)
LED Brand Chips: Option-1: Taiwan LumenMax SMD3014 LEDs (10*23MIL)
Option-2: Taiwan LumenMax SMD5630 LEDs (42*25MIL)
Option-3: Korea Samsung SMD5630 LEDs (42*25MIL)
are available
Dimmable: Dimmable or Non-Dimmable
Color Temperature: 2800~6500K
CRI: >80 ( SMD5630 LEDs )
>72 ( SMD3014 LEDs )
Gross Weight: 4.5Kg
Net Weight: 4.0Kg
Installation Methods: Recessed / Suspended / Wall Mounted / Ceiling Mounted
Standard: UL TUV SAA CE RoHS FCC
Warranty: 3 years
Size: 595x595x12mm (600x600x12mm)
Power: 27W / 36W / 42W / 48W / 54W / 72W
Luminous Flux: 2100lm ( 27W ) 2700lm ( 36W ) 3200lm ( 42W )
3600lm ( 48W ) 4100lm ( 54W ) 5400lm ( 72W ) 5400lm ( 72W )
Input Voltage: AC 100-277V (UL certification) AC100-240V (CE certification)
LED Brand Chips: Option-1: Taiwan LumenMax SMD3014 LEDs (10*23MIL)
Option-2: Taiwan LumenMax SMD5630 LEDs (42*25MIL)
Option-3: Korea Samsung SMD5630 LEDs (42*25MIL)
are available
Dimmable: Dimmable or Non-Dimmable
Color Temperature: 2800~6500K
CRI: >80 ( SMD5630 LEDs )
>72 ( SMD3014 LEDs )
Gross Weight: 4.5Kg
Net Weight: 4.0Kg
Installation Methods: Recessed / Suspended / Wall Mounted / Ceiling Mounted
Standard: UL TUV SAA CE RoHS FCC
Warranty: 3 years
