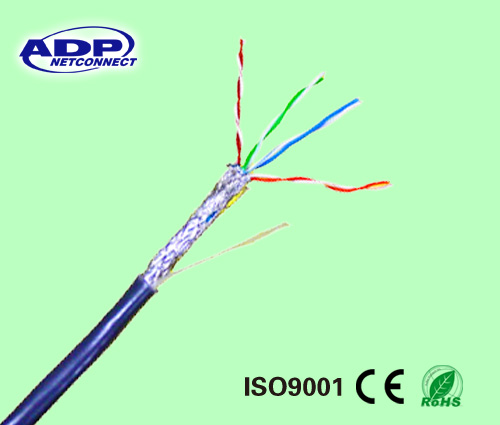

Hot Sale High Speed Ftp Cat5e Cable Networking Cable

Hot Sale High Speed FTP Cat5e Cable Networking Cable

UTP/FTP/SFTP Cat5e cable:
1.Construction:FTP
2.Conductor AWG:24AWG(0.5mm)
3.No. Of Pairs:4 pairs
4.Shielding: PET/AL
5.Drain Wire:yes
6.Nom O.D(mm):5.4

1.Construction:UTP
2.Conductor AWG:24AWG(0.5mm)
3.No. Of Pairs:4 pairs
4.Shielding: non
5.Drain Wire:No
6.Nom O.D(mm):5.0

1.Construction:SFTP
2.Conductor AWG:24AWG(0.5mm)
3.No. Of Pairs:4 pairs
4.Shielding: PET/AL+Wire Braiding
5.Drain Wire:YES
6.Nom O.D(mm):5.8

NOTE: other choice for you
1.Conductor awg: 23awg/24awg/26awg/28awg
2.conductor:bare copper/cca/ccs/cca+ccs/ccag
3.shield:could be AL-FOIL
2)Insulation: HDPE
3)Jacket: LSZH or PVC
4)Rip cord: Optional
5)Standards:ANSI/TIA/EIA-568-B ISO/IEC-11801

Application:

100Base-T4

100Base-TX

100VG-AnyLAN

1000Base-T(Gigabit Ethernet)

155Mbps ATM

622Mbps ATM

Electrical Characteristics:
Frequency(MHz): 1 4 10 20 31.25 62.5 100
Attenuation(dB/100m): 2.0 4.1 6.5 9.3 11.7 17.0 22.0
Impedance(ohm): 100 100 100 100 100 100 100
Return Loss(dB): 17 20 22 20 18 16 15
NEXT(dB/100m): 62.3 53.3 47.3 42.8 39.9 35.4 32.3
ELFEXT: (dB/100m): 61 49 41 35 31 25 21
PS NEXT(dB/100m): 62.3 53.3 47.3 42.8 39.9 35.4 32.3
PS ELFEXT: (dB/100m): 61 49 41 35 31 25 21

Packing:
1) Packing Lengths:
305m/roll
Other lengths available according to client's request.
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request.
