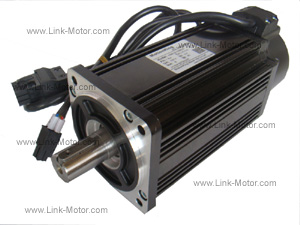

Ac Servo Motors As80-30-024e25
Ac Servo Motors As80-30-024e25Item Code / Model Number:
Ac Servo Motors As80-30-024e25
Rated Power (KW) : 0.75
Rated Voltage (V) : 220
Rated Current (A) : 3.0
Rated Speed (RPM) : 3000
Rated Torque (N.m) : 2.39
Peak Torque (N.m) : 7.1
Peak Current (A) : 9.0
Voltage Constant (V/1000r/min): 48
Torque Coefficient (N.m/A) : 0.8
Rotor Inertia (Kg.m2) : 1.82x10-4
Resistance (Ω) : 2.88
Inductance (mH) : 6.4
Electrical Time Constant (ms) : 2.22
Weight (Kg) : 2.86
Encoder Resolution (PPR) : 2500
Body Length (L, mm) : 150
Rated Voltage (V) : 220
Rated Current (A) : 3.0
Rated Speed (RPM) : 3000
Rated Torque (N.m) : 2.39
Peak Torque (N.m) : 7.1
Peak Current (A) : 9.0
Voltage Constant (V/1000r/min): 48
Torque Coefficient (N.m/A) : 0.8
Rotor Inertia (Kg.m2) : 1.82x10-4
Resistance (Ω) : 2.88
Inductance (mH) : 6.4
Electrical Time Constant (ms) : 2.22
Weight (Kg) : 2.86
Encoder Resolution (PPR) : 2500
Body Length (L, mm) : 150
- Place of Origin:
- China
- Brand:
- Motionking
- Unit Price:
- USD 166.6
- Payment Terms:
- T/T
- Delivery Time:
- 7-14 days
- Min Order Quantity:
- 4pcs
- Keywords:
- ac servo motors
