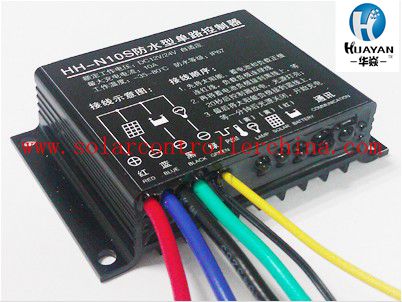

10A waterproof solar charge controller

Specification:HH-N10S
It’s for load/lamp with LED driver

Features:
1)Single load
2)Remote setting/computer interface
3)PWM dimming Module
4)Temperature compensation with temperature sensor
5)Ambient temperature:-40℃~+85℃
6)Adjustable load timer with professional software,3 stage timer
7)Water-proof IP67

Function:
1)Short circuit protection
2)Reverse polarity protection
3)Reverse current protection at night
4)Over charging or discharging protection
5)Over load protection
6)Deep discharging protection

Data Sheet
Working voltage DC12/24V Auto work
Self consumption 3mA (static power consumption on average)
Maximum charging/discharging current 10A
Maximum power of solar panel 170Wp for 12V battery/360 Wp for 24V battery
Charging mode MCT(Maximum current tracking)
Working mode Light control mode/light and time control mode/dawn on mode,support 3 time frame setting
Over-charging voltage protection for battery 14.5V for 12V battery/29V for 24V battery(at 25℃,with temperature compensation)
Over-discharging voltage protection for battery Re-set by users(factory default 10.8V for 12V battery/21.6V for 24V battery)
Exit over-discharging voltage protection Re-set by users(factory default 12.5V for 12V battery/25V for 24V battery)
Light on voltage Re-set by users(factory default 5V)
Temperature compensation -30mv/℃/12V -60mv/℃/24V
Material of controller shell Aluminum
Size of controller 53×82×21mm
IP grade IP67
Weight of controller 150g




Application:
1)solar street lamp
2)Solar garden lamp
3)Other PV system
For 12V system,maximum power supply 170Wp solar panel,Maximum direct current 10A
For 24V system,maximum power supply 360Wp solar panel,Maximum direct current 10A
