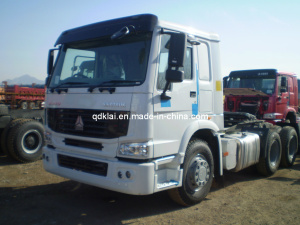

Sinotruk HOWO 6X4 Tractor Truck

SINOTRUK HOWO 6X4 TRACTOR TRUCK,TRACTOR HEAD 371HP
MODEL HOWO 6x4 TRACTOR TRUCK
Cab Driving type Left Hand Drive(RHD is optional)
Cab type HW76 flat roof cab with one sleeper bed,with A/C
Engine Engine Model WEICHAI WD615.47,371hp
Type 6-cylinder in-line with water cooling, supercharging & inter cooling
Displacement 9.726L
Engine output 371hp/2200 rpm
Max. torque 1460NM /1300-1600rpm
Frame and equipments Transmission (gear box) HW19710,10 speed transmission
Clutch D430 Diaphragm type
Steering ZF8098
Front axle HF7 drum type, 7tons
Rear axle HC16 Double reduction Ratio=3.73
Fuel tank 400L
Tires 12.00R20, 10+1spare
Weights in kg Kerb. mass 9180kg
Total mass 25000kg
Max.towed capacity 40tons to 60tons
Performance Max. speed (km/h) 102
Max. gradeability(%) 26
Approach/departure angle 16/70 degree
Dimension in mm Overall dimension(mm) 6800×2496×2958
Wheel base (mm) 3200+1400
Front/rear overhang (mm) 1500/725
Front /rear wheel track(mm) 2022/1850
Saddle joint surface height(empty/full) 1360/1326
Front /rear turning circle(mm) 2790/2230
Minimum ground clearance(mm) 267
Saddle size 2''( 3.5'' is optional)
