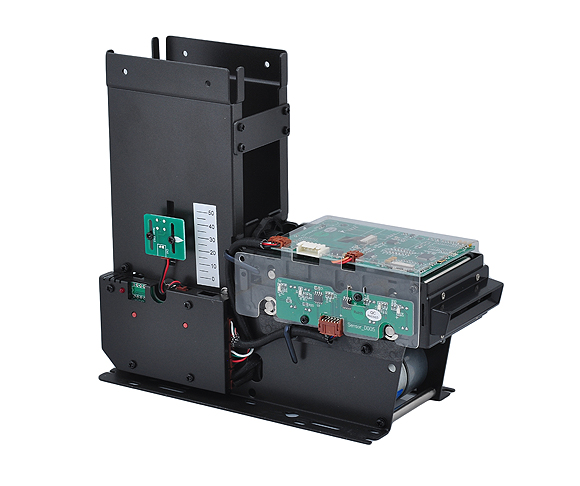

Card Issuing Machine Act-f3-1xxx

ACT-F3-1xxx series card issuing machine supports IC/RF card R/W and issuing/collecting functions, which is primarily applicable to self-service terminal equipments such as parking lot management system, expressway toll gate, self-service charging system, self-service card vending terminal, bank card management system and electricity bill payment system.


Applications
* Information kisok
* Transportation system
* Telecommunication system
* Paper ticket issuing
* Gas station
* Toll gate
* Parking system


Technical Specifications
*Power Supply: DC24V ± 5%, 2.5A
*Quiescent Current: < 200mA
*Communication Method: USB(PC/SC)/ RS232 (optional)
*Service Life(Issuing life): ≥ 1, 000, 000 passes
*Service Life(IC contact): ≥ 500, 000 passes
*Card Stacker Capacity: 175 pcs (0.76mm standard card) /130 pcs (0.76mm embossing card) /350 pcs (0.4mm thickness)
*Capture Box Capacity: 25 pcs (0.76mm standard card)
*Net Weight: Approx. 1.6KG (excluding accessories and package)
*C/D Dimension: 233L x 69W x 200H mm/pc
*Carton Dimension: 515L x 295W x 310 mm/CTN (4 PCS)
*Operation Temperature/ Humidity: 0°C to 50°C, 0 to 90% RH without condensation
*Storage Temperature/ Humidity: -25°C to 80°C, 0 to 90% RH without condensation
*Cards Supported: 86L x 55W mm(0.2~1.2mm thickness; factory standard: 0.8mm)
*Mifare Type A Operating Frequency: 13.56 MHz
*RF Communication Speed: 105k bps
*Warranty: One year (calculating from the receiving date or AWB signing date)
*HS Code:8471419000


Product Descriptions
*Supports ISO7816-2. contact type IC card reading/writing..
*Supports ISO14443-A contactless Mifare Type A/B card reading/writing.
*Unique dispensing wheel design: is capable of issuing various embossing cards accurately.
*Automatic internal adjustment: ensures accurate issuing cards of different thicknesses.
*Multi functions in one device: provides IC/RF card reading/writing, issuing/collecting functions and effectively saves space for the complete machine.
*Rear card capture box: provides convenience for card management.
*Simple collection channel design: satisfies user requirement for large collection amount.
*Multiple sensors: are able to judge the card position and indicate the card status.
*Scientific card transfer wheel design: automatically avoids dust accumulation which will lead to slippage.
*High-strength wearable plastic channel: is adopted to reduce the risk of metal shielding and increase the success rate of RF card reading/writing.
*Multiple levels of sensor circuit protection: prevents optical interference.
*PCSC protocol: is available.
