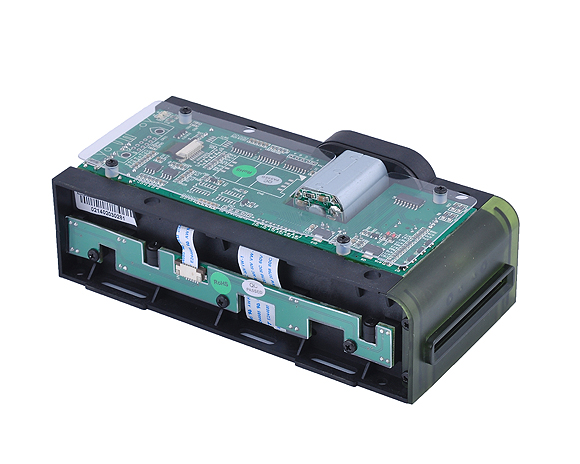

Motorized Card Reader Writer Act-a6

ACT-A6 series motorized card reader/writer supports RF/IC card R/W and magnetic card R, which is a product created from many years of technology and experience accumulation of ACT and the market demand.
ACT-A6 is designed based on the development concept that integrates multiple functions. Careful material selection, rational structure and stable circuit design make it a highly reliable product, meanwhile, its bezel is designed with a user-friendly LED; all these enable ACT-A6 to better meet the market requirements for motorized card reader/writer.

Applications
* Information kisok
* Transportation system
* Telecommunication system
* Paper ticket issuing
* Gas station
* Toll gate
* Parking system

Product Descriptions
*EMV and PBOC certified.
*Supports ISO7810/7811 magnetic card reading only.
*Supports ISO7816-2 contact IC card reading/writing.
*Supports ISO14443-A Mifare Type A/B card reading/writing.
*Protruding bezel: for anti-theft is available.
*Bezel with LED light: provides card insertion indication and/or lighting and prevents the card being left inside.
*Dustproof sensor lens: prevents sensor from dust and/or the other foreign materials.

Technical Specifications
*Card Supported: 86L x 55W mm (0.76mm standard card)
*Power Supply: DC12V±5%, 2A
*Quiescent Current: 100mA
*Service Life (Magnetic Head): 800, 000 passes min.
*Service Life (IC Contact): 500, 000 passes min.
*Operation Temperature / Humidity:0°C to 50°C, 0 to 90% RH without condensation
*Storage Temperature / Humidity:-25°C to 80°C, 0 to 90% RH without condensation
*Net Weight: Approx. 390g
*C/R Dimension: 161L x 85W x 54H mm (with flat bezel)
*Package Dimension:245L x 137W x 93H mm/pc/box
*Carton Dimension: 515L x 295W x 310 mm/CTN (12 PCS)
*Warranty: One year (calculating from the receiving date or AWB signing date)
*HS Code:8471419000

Accessories
*SAM card board (max 4 SAM sockets).
*Switching board for DC/24V to DC/12V.
*Backup power supply (model no.: ACT-S002)
