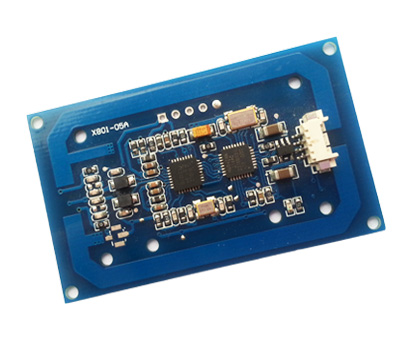

13.56Mhz Embed Mifare Read/writer RFID Module

13.56Mhz Embed Mifare Read/writer RFID Module , IOT5301MW-05IT
Item Code / Model Number:
IOT5301MW-05IT

13.56Mhz Embed Mifare Read/writer RFID Module 13.56Mhz Embed Mifare Read/writer RFID Module
Introduction:
IOT5301MW-05IT series module is Mifare readable and writer module based on 13.56MHz frequency, and compliant with ISO14443A standards, which can operate Mifare1 S50,Mifare1 S70, Mifare Light, Mifare UltraLight, Mifare Pro data to be read and written, and read only UID of other kinds of ISO14443A series cards

IOT5301MW-05IT can be set as auto-request mode, and no need to send any command after power-on, if only the card approach to it, it will send card number via UART automatically

Key Features:
Compliant with ISO14443A standard
Read/Write Mifare 1K,4K, Mifare Ultralight, Mifare Pro
Available with R/W NTAG203,NTAG205,NTAG213, NTAG215 tags
Read UID of all ISO14443A protocol series cards
Easy using and high data transfer
External LED & Buzzer available
Compact in size & comprehensive interface
Auto request mode and transferring data by UART automatically

Technical Parameters:
Frequency 13.56Mhz
Baudrate 9600~115200 bit/s (configurable, default 9600)
Protocol ISO/IEC 14443A
Card types Read and Write:
Mifare1K/4K,Mifare Ultralight,NTAG203,NTAG205,NTAG213,
NTAG215,NTAG216
Read only UID of all other ISO14443A series
Interface TTL(UART)
Power DC 3.3V
Current <10mA
Reading range 50mm (depends on tag and antenna size)
Working temperature -10℃ ~ +70℃
Storage temperature -20℃ ~ +80℃
Dimension 58mmX34.5mmX4.5mm
  • Place of Origin:
  • SHENZHEN
  • Brand:
  • RIOT
  • Payment Terms:
  • T/T
  • Keywords:
  • hf rfid module, mifare module ttl, iso14443a rfid module
