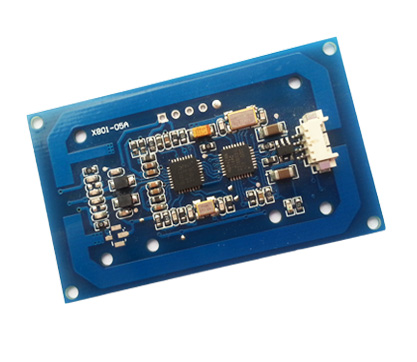

Sell 13.56Mhz Embed Mifare Read/writer RFID Module

Introduction: IOT5301MW-05IT series module is Mifare readable and writer module based on 13.56MHz frequency, and compliant with ISO14443A standards, which can operate Mifare1 S50,Mifare1 S70, Mifare Light, Mifare UltraLight, Mifare Pro data to be read and written, and read only UID of other kinds of ISO14443A series cards IOT5301MW-05IT can be set as auto-request mode, and no need to send any command after power-on, if only the card approach to it, it will send card number via UART automatically Key Features: Compliant with ISO14443A standard Read/Write Mifare 1K,4K, Mifare Ultralight, Mifare Pro Available with R/W NTAG203,NTAG205,NTAG213, NTAG215 tags Read UID of all ISO14443A protocol series cards Easy using and high data transfer External LED & Buzzer available Compact in size & comprehensive interface Auto request mode and transferring data by UART automatically Technical Parameters: Frequency 13.56Mhz Baudrate 9600~115200 bit/s (configurable, default 9600) Protocol ISO/IEC 14443A Card types Read and Write: Mifare1K/4K,Mifare Ultralight,NTAG203,NTAG205,NTAG213, NTAG215,NTAG216 Read only UID of all other ISO14443A series Interface TTL(UART) Power DC 3.3V Current 10mA Reading range 50mm (depends on tag and antenna size) Working temperature -10℃ ~ +70℃ Storage temperature -20℃ ~ +80℃ Dimension 58mmX34.5mmX4.5mm
