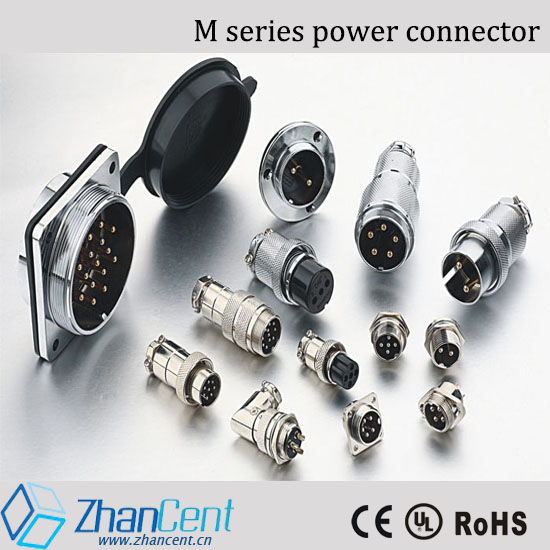

cable plug,circular connector,power plug with CE UL certification
cable plug,circular connector,power plug with CE UL certificationItem Code / Model Number:
cable plug,circular connector,power plug with CE UL certification
Parts Material hole size（cut size） 16mm
Shell Zinc Alloy
Finish Nickel plating
Insulator Bakelite
Contact Copper Alloy
No.Of contacts 2 3 4 5 6
Rated current/Voltage 5A 125V 5A 125V 5A 125V 3A 125V 3A 125V
Operation limt voltage(AC.Vrms) 200 200 200 200 200
Withstanding voltage(AC.V.rms)1 min. 1500 1500 1500 1500 1000
Insulation resistance (MΩ min.)at dc 500V 1500 1500 1000 1000 1000
Contact resistance(MΩ max.)at dc 1A 5 5 5 5 5
Solder inter diameter Φ 1.2 Φ 1.2 Φ 1.2 Φ 1.2 Φ 1.2 zhancent MSN:zhancent@hotmail.com SKYPE:zhancent@hotmail.com WEBSITE:www.zhancent.cn
Shell Zinc Alloy
Finish Nickel plating
Insulator Bakelite
Contact Copper Alloy
No.Of contacts 2 3 4 5 6
Rated current/Voltage 5A 125V 5A 125V 5A 125V 3A 125V 3A 125V
Operation limt voltage(AC.Vrms) 200 200 200 200 200
Withstanding voltage(AC.V.rms)1 min. 1500 1500 1500 1500 1000
Insulation resistance (MΩ min.)at dc 500V 1500 1500 1000 1000 1000
Contact resistance(MΩ max.)at dc 1A 5 5 5 5 5
Solder inter diameter Φ 1.2 Φ 1.2 Φ 1.2 Φ 1.2 Φ 1.2 zhancent MSN:zhancent@hotmail.com SKYPE:zhancent@hotmail.com WEBSITE:www.zhancent.cn
- Place of Origin:
- china
- Brand:
- zhancent
- Unit Price:
- USD 0.35
- Price Terms:
- FOB 0.4
- Packing:
- 100000
- Payment Terms:
- L/C
- Delivery Time:
- 3 days
- Keywords:
- circular connector, power connector
