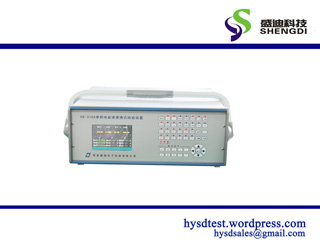

Hs-3103 Single Phase Portable Energy Meter Test Equipment
Hs-3103 Single Phase Portable Energy Meter Test EquipmentContinuous Selling Item
Hs-3103 Single Phase Portable Energy Meter Test Equipment
Output Voltage: 220V. Max:50VA.
Output current: 0.1,1,5,20,100A. Max.100VA
Output voltage and current distortion not larger than 0.3%(if it is a linear load)
The variation of pre-set output power within 180S will not exceed 0.02% compared with the measurement range
Number of harmonic wave: 2-31
Content of harmonic wave: less than 40%(compared with basewave)
Phase of harmonic wave: 0°-359.99°
Reading will be made directly from the standard watt-hour meter
Embedded with three error processors
AC single-phase 220/240(100V110V also available), 50/60hz, maximum input power consumption: 500W
Outer dimensions: 510x540x200mm
Output current: 0.1,1,5,20,100A. Max.100VA
Output voltage and current distortion not larger than 0.3%(if it is a linear load)
The variation of pre-set output power within 180S will not exceed 0.02% compared with the measurement range
Number of harmonic wave: 2-31
Content of harmonic wave: less than 40%(compared with basewave)
Phase of harmonic wave: 0°-359.99°
Reading will be made directly from the standard watt-hour meter
Embedded with three error processors
AC single-phase 220/240(100V110V also available), 50/60hz, maximum input power consumption: 500W
Outer dimensions: 510x540x200mm
- Place of Origin:
- China
- Brand:
- Shengdi Technology
- Unit Price:
- USD 4000
- Port:
- FOB Shanghai
- Packing:
- WOODEN CASE
- Payment Terms:
- L/C;T/T
- Payment Remarks:
- 40% DEPOSIT
- Delivery Time:
- 15
- Min Order Quantity:
- 1
- Standard / Certificates:
- IEC60736
