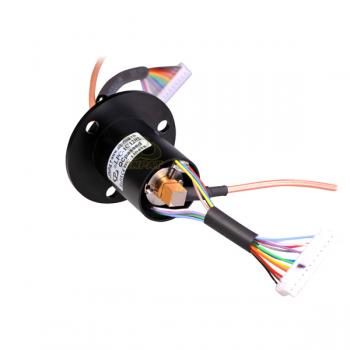

High Frequency Slip Ring
High Frequency Slip Ring, LPC-1C1202Item Code / Model Number:
LPC-1C1202
High Frequency Slip Ring
High frequency slip ring is used for continuous rotary device, which transfers the Hi-frequency signal between the fixed part and the rotary part. The LPC-1C-1202-A high frequency slip ring is a special unit with RF Coaxial Connector. The Bandwidth could achieve 50MHz to 3GHz.
Specification:
Operating Speed: 50rpm max
Number of Circuits:12
Voltage: 240 VAC/DC
Current Rating: 2 amps per circuit
Contact Material: Gold to Gold
Insulation Resistance: 100mΩ@500VDC
Electric Noise: ≤50mΩ
Specific Impedance: ≤50mΩ
IP: IP54
Cable size: RJ316/U (Flexible Coaxial Cable)
Connector Model: SMA/BNC/TNC/SMB
Contact Material: Metal
Application:
CCTV Camera System
Radar Antenna and military system
Specification:
Operating Speed: 50rpm max
Number of Circuits:12
Voltage: 240 VAC/DC
Current Rating: 2 amps per circuit
Contact Material: Gold to Gold
Insulation Resistance: 100mΩ@500VDC
Electric Noise: ≤50mΩ
Specific Impedance: ≤50mΩ
IP: IP54
Cable size: RJ316/U (Flexible Coaxial Cable)
Connector Model: SMA/BNC/TNC/SMB
Contact Material: Metal
Application:
CCTV Camera System
Radar Antenna and military system
- Place of Origin:
- China
- Brand:
- JINPAT
- Unit Price:
- USD 1
- Price Terms:
- FOB Yantian
- Packing:
- Carton
- Payment Terms:
- L/C;T/T;D/D
- Delivery Time:
- 20 days
- Min Order Quantity:
- 1
- Standard / Certificates:
- FCC CE RoHS
- Keywords:
- cctv slip ring, coaxial connnector, rotary joint
