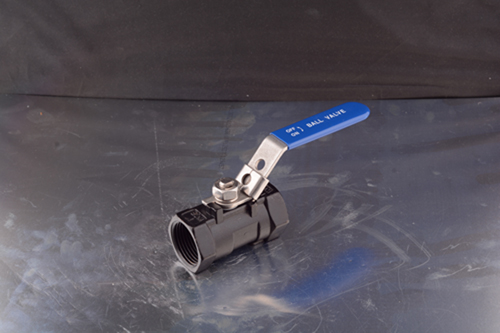

1PC BALL VALVE
1PC BALL VALVEItem Code / Model Number:
1PC BALL VALVE
(T1R01) 1PC 1000PSI Ball Valve Measures 1/4 to 4 inches, Investment Casting Body and Cap,
Key Specifications/Special Features:
Investment casting Body and Cap
Design and manufacture:ASME B16.34
Test and inspection:API598
Blow-out froof stem
Locking device and handle indicating open/close (optional)
Pressure: 1000WOG
Size: 1/4 to 4 inches
Standard Bore
Thead Ends:ANSI B1.20.1 (NPT)
BS7/1 (DIN2999 )
ISO7/1 (ISO228)
Materials:CF3M,CF8M,CF8,WCB,
Operation: hand lever
Key Specifications/Special Features:
Investment casting Body and Cap
Design and manufacture:ASME B16.34
Test and inspection:API598
Blow-out froof stem
Locking device and handle indicating open/close (optional)
Pressure: 1000WOG
Size: 1/4 to 4 inches
Standard Bore
Thead Ends:ANSI B1.20.1 (NPT)
BS7/1 (DIN2999 )
ISO7/1 (ISO228)
Materials:CF3M,CF8M,CF8,WCB,
Operation: hand lever
- Place of Origin:
- china
- Brand:
- ZY
- Packing:
- plywood case
- Payment Terms:
- L/C;T/T
- Delivery Time:
- 30 days
- Min Order Quantity:
- 1
- Keywords:
- 1pc ball valve, valve, ball valve
