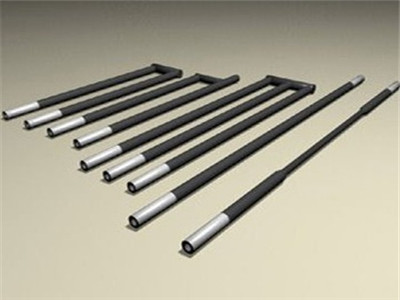

high temperaturer industrial muffle furnace electric SiC silicon carbide rod
high temperaturer industrial muffle furnace electric SiC silicon carbide rod , WG-001Item Code / Model Number:
WG-001
high temperaturer industrial muffle furnace electric SiC silicon carbide rod
SiC heating elements properties:
1. Withstands as high as 1600°C (surface temperature)
2. Generates high heat output per unit surface area, approximately 5-10 times than the output of Nichrome wire.
3. High strength and excellent shock resistance
4. Heat source is free of noise and air pollution.
5. characters: high-applied temperature ,anti-oxidization ,anti-corrosion ,long service life, little deformation, easy installation and maintenance.
SiC heating elements production process:
Spiral SiC heating elements are made from high-density, high-purity silicon carbide, which is the most popular type of economical heating element capable of operating under hot and rigorous environments. and made into blank, silicided under high temperature and re-crystallized.
SiC heating elements usages:
It is used in various high temperature electric furnaces and other electric heating devices, such as in the industries of magnet, ceramics, metallurgy, glass, and machinery.
When you place an order of the Rod Shape SiC Heating Element, please give following information:
OD: Outer Diameter;
HZ: Length Of Hot Zone;
CZ: Length Of Cold Zone;
OL: Total Length
Order Sample of the Rod Shape SiC Heating Element
ED (Rod) Shape: OD=54mm, HZ=1575mm, CZ=419mm OL=2413mm, Resistance: 0.9
Please Specify As: 54/1575/2413/0.90
1. Withstands as high as 1600°C (surface temperature)
2. Generates high heat output per unit surface area, approximately 5-10 times than the output of Nichrome wire.
3. High strength and excellent shock resistance
4. Heat source is free of noise and air pollution.
5. characters: high-applied temperature ,anti-oxidization ,anti-corrosion ,long service life, little deformation, easy installation and maintenance.
SiC heating elements production process:
Spiral SiC heating elements are made from high-density, high-purity silicon carbide, which is the most popular type of economical heating element capable of operating under hot and rigorous environments. and made into blank, silicided under high temperature and re-crystallized.
SiC heating elements usages:
It is used in various high temperature electric furnaces and other electric heating devices, such as in the industries of magnet, ceramics, metallurgy, glass, and machinery.
When you place an order of the Rod Shape SiC Heating Element, please give following information:
OD: Outer Diameter;
HZ: Length Of Hot Zone;
CZ: Length Of Cold Zone;
OL: Total Length
Order Sample of the Rod Shape SiC Heating Element
ED (Rod) Shape: OD=54mm, HZ=1575mm, CZ=419mm OL=2413mm, Resistance: 0.9
Please Specify As: 54/1575/2413/0.90
- Place of Origin:
- China
- Brand:
- Wanguo
- Unit Price:
- USD 1
- Price Terms:
- FOB Qingdao
- Packing:
- Wooden Box
- Payment Terms:
- L/C;T/T;Cash
- Delivery Time:
- 3-10 days
- Min Order Quantity:
- 20
- Standard / Certificates:
- ISO9001
- Keywords:
- silicon carbide, silicon carbide rod, sic silicon carbide rod
