Embedded Microcontrollers CY8C3245AXI-166T

Datasheets CY8C32 Family

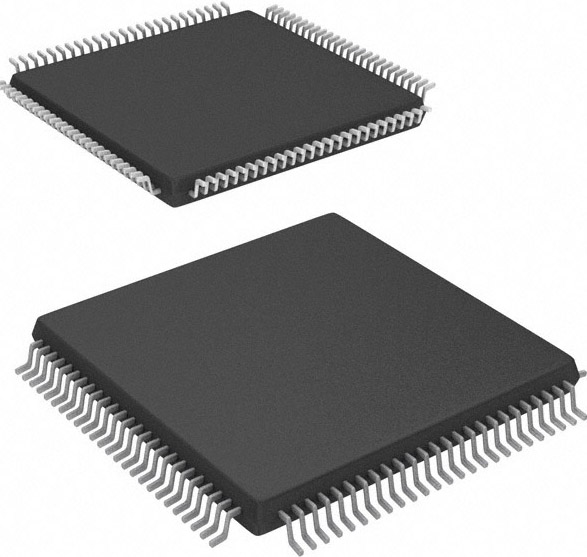

Product Photos 100TQFP

PCN Design/Specification PSoC 3 Design Changes 14/Sep/2013
PSoC Programmer Upgrade 11/Jun/2014

PCN Assembly/Origin Qualification Test/Finish Site 15/Dec/2013
Qualification BEOL 13/Mar/2014
Qualification Test Site 13/Mar/2014
Qualification Tape Supplier 18/Mar/2014
Qualification Copper Wire Bonds 18/Jun/2014

PCN Packaging New Tray and TR Materials 13/Dec/2013

Standard Package 1,500
Category Integrated Circuits (ICs)
Family Embedded - Microcontrollers
Series PSOC® 3 CY8C32xx
Packaging Tape & Reel (TR)
Core Processor 8051
Core Size 8-Bit
Speed 50MHz
Connectivity EBI/EMI, I²C, LIN, SPI, UART/USART, USB
Peripherals CapSense, DMA, POR, PWM, WDT
Number of I/O 62
Program Memory Size 32KB (32K x 8)
Program Memory Type FLASH
EEPROM Size 1K x 8
RAM Size 4K x 8
Voltage - Supply (Vcc/Vdd) 1.71 V ~ 5.5 V
Data Converters A/D 1x12b, D/A 1x8b
Oscillator Type Internal
Operating Temperature -40°C ~ 85°C
Package / Case 100-LQFP
Supplier Device Package 100-TQFP (14x14)
