10M 400W Super Brightness Solar street Light Led street luminaire the Best Cost-performance

The HELIOS-H10 is a state-of-the-art, solar-powered lighting solution for outdoor use. Its modular design, highly efficient solar panel and durable construction make it a reliable and environmentally friendly lighting option for a variety of environments, from residential to commercial areas.

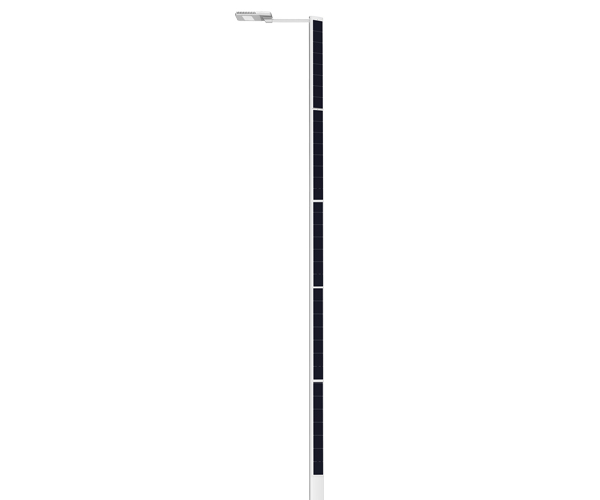

This is a 10-meter triangular solar smart light pole, suitable for roads of 10-15 meters. The recommended installation spacing is 30-30 meters. The street light brightness is 24,000 lumens and the brightness can be adjusted. 10 solar panels are installed vertically on the light pole, facing the sun at 270 degrees, with more irradiation area and improved power generation efficiency. Using 1800WH CATL LiFePO4 batteries, it can guarantee 4-5 days of normal use even on rainy days. At the same time, the battery life is up to more than 8 years. The triangular lamp post is not only for more sunlight, but also has good windproof performance. Equipped with a remote intelligent management platform and ZIGBEE transmission network, it monitors the working status of each component in real time and reports emergencies. Supports multiple working modes, time-controlled light-controlled sensing mode, etc.

Main features:

1. LED chip technology: Using Philips 5050 LED French fries, the HELIOS-H10 delivers an excellent light output of 15000-24000 lumens, ensuring a well-lit environment.
2. Longevity: With a lifetime of up to 100,000 hours according to LM80 specifications, the LED French fries are designed for longevity and consistent performance.
3. Modular and customizable: The HELIOS-H10 offers a modular mounting system and a customizable lamp holder that allows flexible installation and adaptation to different pole heights.
4. Efficient solar module: The HELIOS-H10 is equipped with a monocrystalline solar module that has an efficiency of up to 24% and maximizes energy conversion from sunlight.
5. Battery and performance: An integrated rechargeable battery with a capacity of 2400WH provides more than 10 days of lighting in rainy weather, with a service life of 4000 cycles, which corresponds to an operating time of more than 10 years.
6. High wind resistance: The HELIOS-H10 is made of a robust aluminum alloy and is therefore also suitable for areas where strong winds prevail.
7. Advanced control systems: The system is equipped with an intelligent MPPT (Maximum Power Point Tracking) controller that optimizes energy conversion and extends battery life.

8. Elegant and practical design: With its sophisticated, modern European design, the HELIOS-H10 is a product for private mold that offers high quality and a competitive advantage in tenders. Its esthetics are in harmony with its practicality, as the tempered glass surface is not only durable but also less susceptible to dust deposits.

9. Customizable lampheads: The HELIOS-H10 comes with a variety of lamphead options that allow customers to customize the lighting to their specific needs and preferences.

10. Aerospace-grade aluminum construction: The entire unit is made of aluminum, a material known for its strength and lightness. This construction ensures that the HELIOS-H10 is not only robust, but also efficiently dissipates heat thanks to the anodic oxidation process that increases its durability and resistance to weathering.

11. Innovative pole design: As the first company in China to design a triangular lamp post, we have set a new standard in the industry. The HELIOS-H10 triangular pole offers the highest wind resistance compared to other pole shapes, making it the ideal choice for areas exposed to strong winds.

12. Patented MPPT controller: The HELIOS-H10 is equipped with an industry-leading patented MPPT (Maximum Power Point Tracking) controller.

Technical Specifications:

Model Number: H10

Light Output: 15000-24000LM

LED Chip: High bright 5050

Correlated Color Temperature (CCT): 2700-6000K (customizable)

Solar Panel Power: 400W

Storage Battery Capacity: 2400WH

Life Span of PV Module: 80% power after 25 years

Charging Controller Life Span: Over 12 years

Working Temperature: -15°C to +70°C

Water Resistance: IP65 rating

Recommended Pole Height: 10m
