8M 320W Super Brightness Smart Solar Pole Led street luminaire
8M 320W Super Brightness Smart Solar Pole Led street luminaire, Helios-H8
8M 320W Super Brightness Smart Solar Pole Led street luminaire
Product discription:

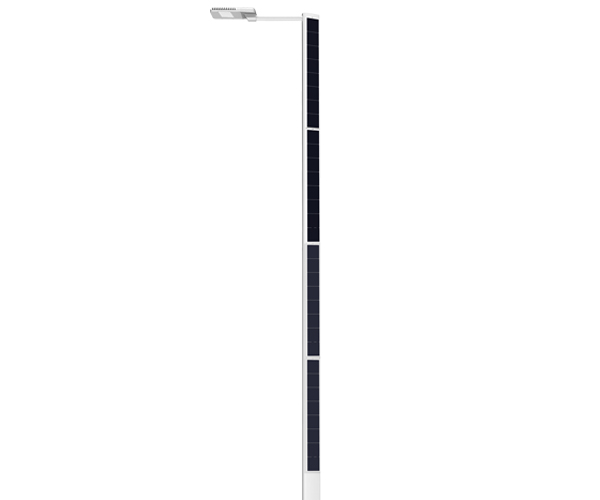

Looking for a cost-effective and sustainable lighting solution for city street or commercial places? Discover the HELIOS-H8 Solar Street Light , a product that epitomizes innovation and sustainability. This is an 8-meter triangular solar smart light pole, suitable for 8-12-meter roads. The recommended installation spacing is 16-25 meters. The street light brightness is 18,000 lumens and the brightness can be adjusted. 8 solar panels are installed vertically on the light pole, facing the sun at 270 degrees, with more irradiation area and improved power generation efficiency. Using 1800WH CATL LiFePO4 batteries, it can guarantee 4-5 days of normal use even on rainy days. At the same time, the battery life is up to more than 8 years. The triangular lamp post is not only for more sunlight, but also has good windproof performance. Equipped with a remote intelligent management platform and ZIGBEE transmission network, it monitors the working status of each component in real time and reports emergencies. Supports multiple working modes, time-controlled light-controlled sensing mode, etc.
Application: City Road, Suqare, high way, Park , Shopping mall, school and etc.
Technical Specifications:
| Specification | Description |
|---|---|
| Model Number | HELIOS-H8 |
| Light Output | 15,000-18,000 Lumens, ensuring bright and effective illumination. |
| LED Chip | High-brightness 5050 LED chip for enhanced light quality and efficiency. up to 220lm/w |
| Color Temperature (CCT) | Adjustable from 2700K to 6000K, customizable for various environments. |
| LED Lifespan | Over 100,000 hours to LM80 specifications. |
| Working Methods | Motion sensor, IoT, and time schedule options for energy-efficient operation. |
| Solar Panel | 320W monocrystalline solar panel with up to 24% efficiency. |
| Battery Capacity | 1800WH, ensuring over 10 days of lighting during continuous rain. |
| Life Span of PV Module | Maintains 80% power after 25 years. |
| Charging Controller Life Span | Over 12 years. |
| Control Mode | Intelligent MPPT control, sunlight activated. |
| Working Temperature | -15°C to +70°C. |
| Water Resistance | IP65 rated. |
Aluminum Construction: Our solar street lights are crafted from full aluminum material, offering robustness and protection against corrosion, ensuring long-lasting durability.
High-Efficiency Solar Panels: With 24% efficiency, our solar panels can fully charge in just 3-4 hours, providing ample energy for daily use.
Large-Capacity LiFePO4 Battery: Equipped with a high-capacity LiFePO4 battery, our lights can operate normally for 4-5 consecutive days during continuous overcast or rainy weather.
Advanced BMS Protection: The battery is safeguarded by a top-tier Battery Management System (BMS) that prevents overcharging and over-discharging, balances internal electricity, and offers protection against reverse polarity and short circuits.
Long Battery Lifespan: Our batteries are designed to last over 8 years, are safe from spontaneous combustion or explosion, and are supported by international certification.
Vertically Installed Solar Panels: Designed to prevent dust accumulation, these panels ensure efficient operation and reduce the frequency of maintenance.
Aesthetic Design: With an attractive appearance, our company is one of the pioneers in manufacturing triangular lamp poles in China.
Extended Warranty: We provide a 5-year warranty on our products and offer customized extended warranty services to meet specific needs.
Easy Installation and Maintenance: Our solar street lights are easy to install and maintain, with low installation costs and no need for complex wiring, making them ideal for areas with challenging grid connections.
Integrated Smart IOT System: Featuring a remote intelligent Internet of Things (IOT) system, our lights allow for real-time monitoring of each component's operational status and provide immediate feedback on critical issues, ensuring efficient management of large-scale installations.
- Place of Origin:
- China
- Brand:
- Nomo
- Delivery Time:
- 15 days
- Standard / Certificates:
- CE CB ROHS IP65 IOS9001
- Keywords:
- solar lights, high mast, street light
