Eco Smart Solar Pole Light High Quality High End

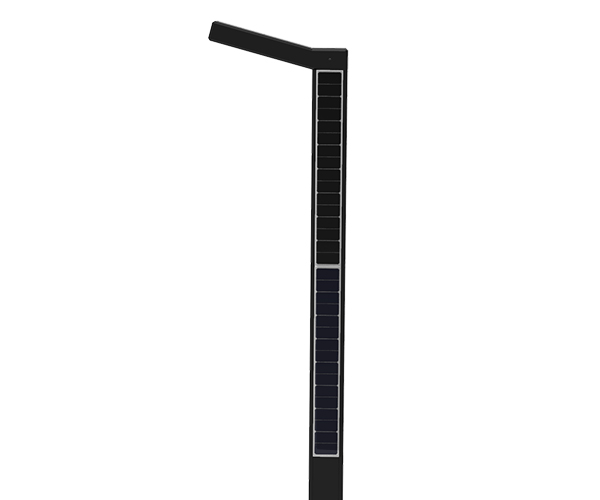

The square Helios pole light is based on the modification of the triangle lamp post, which is simple and generous. The four-sided high-efficiency solar panel tightly surrounds the quadrilateral Helios pole and the solar panel at the top of the led fixture to absorb the sunlight in all directions, so as to meet the long days ' backup demand. Built-in the battery and controller to the light pole, which is convenient for daily maintenance. With our loT system, we can monitor and control the working mode of light at any time. The square Helios is more suitable for villa areas,Parks Lakeside and other areas.

1. Inspired Design: It is based on a modified triangular lamp post, blending simplicity and elegance.
2. Solar Power Efficiency: Equipped with a four-sided high-efficiency solar panel that captures sunlight from all directions, ensuring optimal energy absorption.
3. All-Weather Capability: Designed to meet the backup demand for long days, indicating its suitability for various weather conditions.
4. Integrated Battery and Controller: Built directly into the light pole for ease of maintenance and reliability.
5. loT Connectivity:Incorporates an loT system for real-time monitoring and control of the light's operation, enhancing user convenience and functionality.
6. Versatile Application: ldeal for use in areas such as villa districts, parks, and lakesides, where its aesthetic and functional attributes can be fully appreciated.
7. LED Technology: Utilizes LED fixtures, which are known for their energy efficiency and long lifespan.
8. Environmentally Friendly: By harnessing solar power, the Square Helios Pole Light contributes to a greener and more sustainable environment.

 Products Specifications:

• Model Number: Square Helios
• Lighting Light Output: 12000LM to 15000LM
• LED Chip: High bright 5050
• Correlated Color Temperature (CCT): 2700K to 6000K, customizable
• Life Span: 100,000 hours as per LM80 specifications
• Working Methods: Motion Sensor, IoT, Time Schedule
• Solar Panel Power of PV Module: 125W
• Solar Panel Life Span: Retains 80% power after 25 years
• Storage Battery Capacity: 1100WH
• Lighting Time in Rainy Day: More than 10 days
• Storage Life Span: 4000 Cycles, over 10 years
• Charging Controller Life Span: More than 12 years
• Charging Controller Working Mode: MPPT (Maximum Power Point Tracking)
• Control Mode: Intelligent, activated by sunlight
• Environment Working Temperature: -15°C to +70°C
• Water Resistance: IP65
• Recommended Pole Height: 6 meters

Products details:

LED chip: High efficiency long life LED module with SMD LED package mounted on MCPCB.Lumen efficacy of LED ≥220 lm/W.

Lens: Batwing optical design withPMMA material, vastly improve the illumination area and has highly-uniform illumination.and transmittance rate is up to 94%

Newest Generation LiFePO4 battery: Comparing with the regular solar light which only can work with low power or shorter time, we adopt the newest generation LiFePO4 battery, it has a longer lifespan, up to more than 3000 circles, and enable to work 12 hours continuously at least with 100% power output. Even at ambient temperature 75 degrees, the battery in the lamp still can discharge normally due to its high temperature-resistance.
