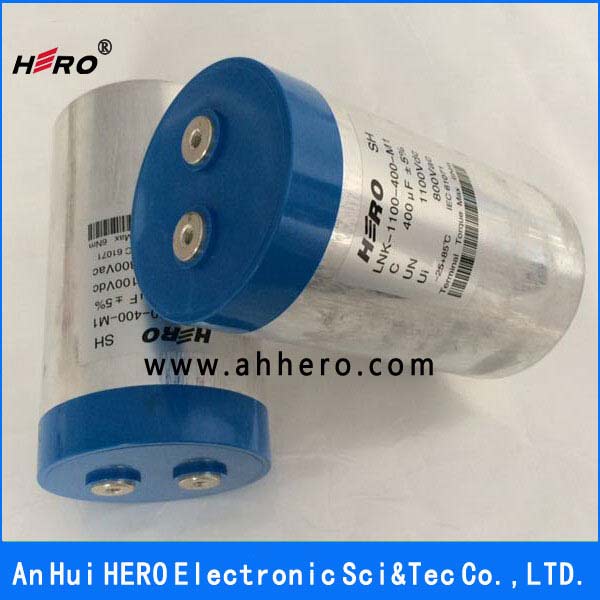

Solar Super Power DC-link Capacitor

Temperature Range
-40°C~+85°C
Capacity Range
0.47μF~12000μF
Capacitance deviation
±5%(J),±10%(K)
Voltage
500VDC~15000VDC
Dielectric
1.5UN/60S
Dissipation
tgδ≤0.002(at 1KHz)
Insulation resistance
CxRs≥5000S(at20°C 100V.DC 60S)
Shock current capability
dv/dt>50v/μs
Flammability
UL94V-0
Stray inductance
≤30nH
Effective Current
10~80A
Reference Standard
Enterprise standards in line with IEC61071 ,IEC61881 ,GB17702.1
Case components
aluminum,plastic,304 stanless steel
Terminals
tinned brass nut or screws
Installation
whatever installation
Failure rate
50 FIT
