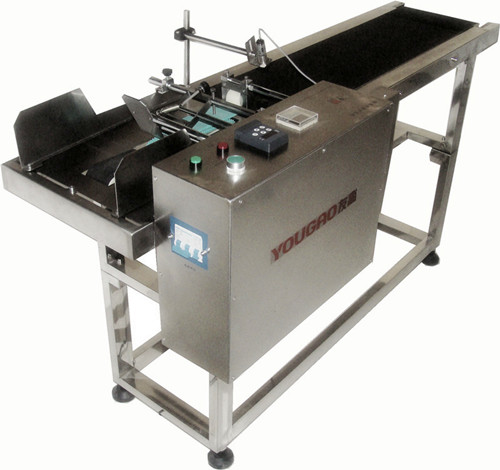

High-speed automatic paging machine(feeder conveyor)
High-speed automatic paging machine(feeder conveyor), YG-2011Item Code / Model Number:
YG-2011
High-speed automatic paging machine(feeder conveyor)
Scope of application:
1.Packaging bags: Plastic bags、Cartons、Paper bags、labels、papers etc;
2.Cards: IC cards、IP cards etc.
Application: used to automatically separate stacks of packaging bags or cards and convey single piece onto the conveyor belt so as to facilitate ink-jet printer or laser coding machine to spray print or spray etch the date of production, batch number, anti-fake mark, pattern, etc., and thus reduce the trifles of manual paging, make full use of the advantages of high-speed spray printing of coding machine and laser machine and improve spray printing efficiency, meanwhile, it is equipped with the function of intelligent counting and automatic stop to facilitate production management.
Features:
1. Imported variable frequency stepless speed regulator, high-speed automatic paging 60-600 pcs/min.
2. Can automatically count, or can set the quantity of pages to be separated automatically, until when the required quantity of pages to be separated is reached, machine stops automatically, the setting range is 1-9999(needs to be shared with the signals of coding machine or laser machine).
3. High paging speed, high positioning accuracy and high production efficiency.
4. Reasonable structural design, and simple and quick replacement of easily-worn parts.
5. Optional accessories: automatic receiving device, separate signal source for counting shutdown of the paging machine.
Technical parameter:
Device name High-speed automatic paging machine
Model YG-2011A
paging mode frictional type
size of object to be separated 40-320mm
Width 60-280mm
Thickness 0.02-5mm
power supply 220v
power 180W
Intelligent counting Automatic shutdown function With
speed regulation mode Variable frequency stepless speed regulation
Dimension of M/C 1450×500×865mm
Remarks standard type
1.Packaging bags: Plastic bags、Cartons、Paper bags、labels、papers etc;
2.Cards: IC cards、IP cards etc.
Application: used to automatically separate stacks of packaging bags or cards and convey single piece onto the conveyor belt so as to facilitate ink-jet printer or laser coding machine to spray print or spray etch the date of production, batch number, anti-fake mark, pattern, etc., and thus reduce the trifles of manual paging, make full use of the advantages of high-speed spray printing of coding machine and laser machine and improve spray printing efficiency, meanwhile, it is equipped with the function of intelligent counting and automatic stop to facilitate production management.
Features:
1. Imported variable frequency stepless speed regulator, high-speed automatic paging 60-600 pcs/min.
2. Can automatically count, or can set the quantity of pages to be separated automatically, until when the required quantity of pages to be separated is reached, machine stops automatically, the setting range is 1-9999(needs to be shared with the signals of coding machine or laser machine).
3. High paging speed, high positioning accuracy and high production efficiency.
4. Reasonable structural design, and simple and quick replacement of easily-worn parts.
5. Optional accessories: automatic receiving device, separate signal source for counting shutdown of the paging machine.
Technical parameter:
Device name High-speed automatic paging machine
Model YG-2011A
paging mode frictional type
size of object to be separated 40-320mm
Width 60-280mm
Thickness 0.02-5mm
power supply 220v
power 180W
Intelligent counting Automatic shutdown function With
speed regulation mode Variable frequency stepless speed regulation
Dimension of M/C 1450×500×865mm
Remarks standard type
- Place of Origin:
- china
- Brand:
- YOUGAO
- Unit Price:
- USD 1200.00
- Price Terms:
- FOB SHANGHAI
- Packing:
- PLYWOOD CASE
- Payment Terms:
- L/C;T/T;Cash
- Delivery Time:
- 15 days
- Min Order Quantity:
- 1set
- Standard / Certificates:
- CE
- Keywords:
- coding conveyor, inkjet printer, tto printer
