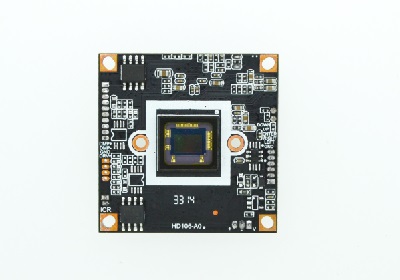

Cmos Color Camera Board
Cmos Color Camera Board
Cmos Color Camera Board
Specification:
Imaging Device 1/4 CMOS Pixelplus 7030
Effective pixels 648 (h) * 488 (v)
System standard PAL / NTSC
Horizontal Resolution 600TVL
SNR> 50db
Min. illumilation: 0.1LUX
BLC : AUTO
AES:AUTO / 1/50 (1/60) -1 / 100,000sec
AWB:AUTO
Video output: CVBS / 1.0VP / 75
CDS_IN: DC 3V-8V
OSD menu is not supported
Operating voltage :DC12V / 70mA ± 5mA
Working environment: -15 degree --- 50 degree
Features:
Pixelplus 7030 frame rate, 60fps, smooth images, high brightness, no smear under low noise;
Offers two versions, IR-CUT filter version and paste version (filter types of customers can be customized),
Color brilliant, clear picture quality, good night vision;
Using 49S passive crystal, anti-vibration, long life.
Imaging Device 1/4 CMOS Pixelplus 7030
Effective pixels 648 (h) * 488 (v)
System standard PAL / NTSC
Horizontal Resolution 600TVL
SNR> 50db
Min. illumilation: 0.1LUX
BLC : AUTO
AES:AUTO / 1/50 (1/60) -1 / 100,000sec
AWB:AUTO
Video output: CVBS / 1.0VP / 75
CDS_IN: DC 3V-8V
OSD menu is not supported
Operating voltage :DC12V / 70mA ± 5mA
Working environment: -15 degree --- 50 degree
Features:
Pixelplus 7030 frame rate, 60fps, smooth images, high brightness, no smear under low noise;
Offers two versions, IR-CUT filter version and paste version (filter types of customers can be customized),
Color brilliant, clear picture quality, good night vision;
Using 49S passive crystal, anti-vibration, long life.
- Place of Origin:
- China
- Brand:
- Jasanwit
- Unit Price:
- USD 19.00
- Port:
- EXW Shenzhen
- Packing:
- Normal
- Payment Terms:
- ;T/T;Cash
- Payment Remarks:
- Western Union
- Delivery Time:
- 7-15
- Min Order Quantity:
- 1000pcs
