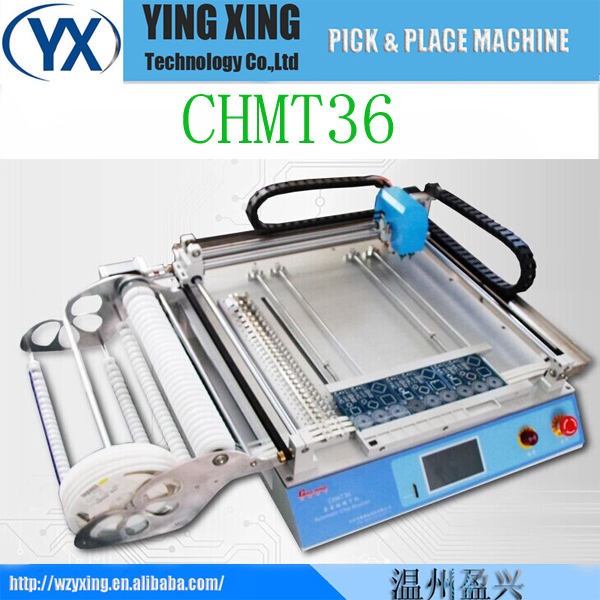

Pick And Place Machine Chmt36
Pick And Place Machine Chmt36Item Code / Model Number:
Pick And Place Machine Chmt36
Product Description
Surface Mount System,CHMT36,0402,0605,5050,0803, Automatic Desktop Smt Pick and Place Machine
Version: CHMT36
Applicable PCB: 10mm*10mm~380mm*415mm
XY axis moving range: 420×460mm
Z axis moving range: 15mm
Placement head quantity: 2
Mounting capability: 7200cph
Mounting accuracy: ±0.025mm
Applicable Components: 0402-5050,SOP,QFN
Components supply configuration:Tape reel, bulk package (IC)
Tape width:8mm,12mm,16mm
Feeders:29 (8MM=22,12MM=4,16MM=2,Bulk IC=1)
External Dimension:L 960mm×W 705mm×H 335mm
Vacuum pump:15-92KPA (Mute type pump)
Vacuum pump quantity:3 vacuum pump(one psitive,two negative)
Power supply: 220V, 50Hz (convertible to 110V)
Average working power:200W
Weight(With the package):75KGS
Packing size:0.51m³
Standard Accessories:
1) Pick and Place Machine CHMT36:1
2) 4 types of nozzle: Totally 6 (SX—3, S—1, M—1, ML—1).
3) 8G SD Card: 1
4) Card reader: 1
Packaging & Shipping
Plywood package,solid and steady.Non-Fumigation.
Surface Mount System,CHMT36,0402,0605,5050,0803, Automatic Desktop Smt Pick and Place Machine
Version: CHMT36
Applicable PCB: 10mm*10mm~380mm*415mm
XY axis moving range: 420×460mm
Z axis moving range: 15mm
Placement head quantity: 2
Mounting capability: 7200cph
Mounting accuracy: ±0.025mm
Applicable Components: 0402-5050,SOP,QFN
Components supply configuration:Tape reel, bulk package (IC)
Tape width:8mm,12mm,16mm
Feeders:29 (8MM=22,12MM=4,16MM=2,Bulk IC=1)
External Dimension:L 960mm×W 705mm×H 335mm
Vacuum pump:15-92KPA (Mute type pump)
Vacuum pump quantity:3 vacuum pump(one psitive,two negative)
Power supply: 220V, 50Hz (convertible to 110V)
Average working power:200W
Weight(With the package):75KGS
Packing size:0.51m³
Standard Accessories:
1) Pick and Place Machine CHMT36:1
2) 4 types of nozzle: Totally 6 (SX—3, S—1, M—1, ML—1).
3) 8G SD Card: 1
4) Card reader: 1
Packaging & Shipping
Plywood package,solid and steady.Non-Fumigation.
- Place of Origin:
- Zhejiang
- Brand:
- Yx
- Unit Price:
- USD 360
- Price Terms:
- FOB Shanghai/shenzhen/guangzhou
- Packing:
- With strong wooden package
- Payment Terms:
- T/T
- Delivery Time:
- Good in stock days
- Min Order Quantity:
- 1set
- Keywords:
- pick and place machine
