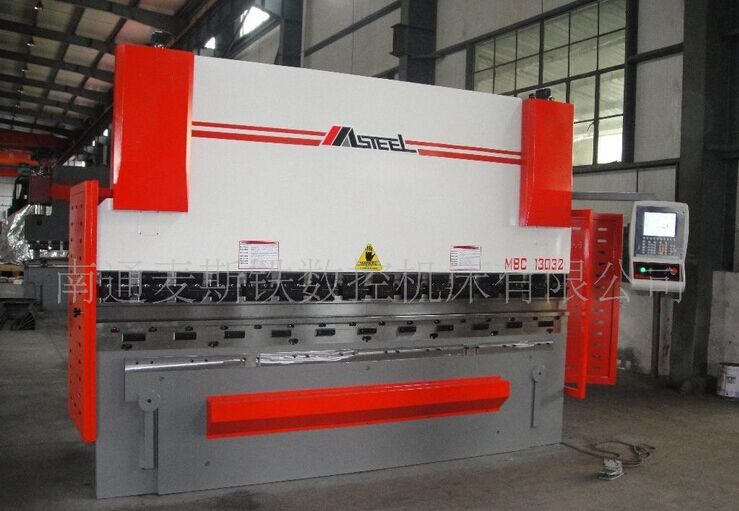

Mbc Hydraulic Synchronized Cnc Brakes
Mbc Hydraulic Synchronized Cnc Brakes, MBCItem Code / Model Number:
MBC
Mbc Hydraulic Synchronized Cnc Brakes
Standard S525 CNC control with 320*240 pixels graphic display for MBC series with 3+w axes.
0.0004” high resolution linear scales provide precision dual ram position feedback.
Y1, Y2 programmable independently in angle or position..
Hydraulic synchronized ram parallelism control compensates unven force on the bend by means of hydro-electrical technique.
Servo cnc back gauge with precision ball screw and linear guide way ensures unsurpassed rigidity and high productivity speed.
Back gauge position speed at 8”/s, repeatability at ±0.001”.
Automatic or programmable back gauge retract feature.
Auto and programmable pressure control.
Programmable ram top stop and slow bending position.
Programmable bending speed.
Automatic conversion:Inch/mm
Prome cam punch clamping system with quick release on braked under less than 320Ton.
0.0004” high resolution linear scales provide precision dual ram position feedback.
Y1, Y2 programmable independently in angle or position..
Hydraulic synchronized ram parallelism control compensates unven force on the bend by means of hydro-electrical technique.
Servo cnc back gauge with precision ball screw and linear guide way ensures unsurpassed rigidity and high productivity speed.
Back gauge position speed at 8”/s, repeatability at ±0.001”.
Automatic or programmable back gauge retract feature.
Auto and programmable pressure control.
Programmable ram top stop and slow bending position.
Programmable bending speed.
Automatic conversion:Inch/mm
Prome cam punch clamping system with quick release on braked under less than 320Ton.
- Place of Origin:
- China
- Brand:
- Masteel
- Unit Price:
- USD 100000
- Price Terms:
- FOB Shanghai
- Packing:
- Plastic paper or nude package
- Payment Terms:
- T/T
- Delivery Time:
- 30 days
- Min Order Quantity:
- 1 set
- Standard / Certificates:
- ISO 9001
- Keywords:
- hydraulic cnc brake
