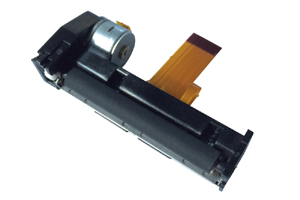

Therma Printer Mechanism Compatible with Seiko Ltp02-245
Therma Printer Mechanism Compatible with Seiko Ltp02-245Item Code / Model Number:
Therma Printer Mechanism Compatible with Seiko Ltp02-245
Model: TP202
Printing Method Thermal
Dots/line 384 dots/line
Resolution 8
Printing Width(mm) 48
Paper Width(mm) 58
Feed Resolution(mm) 0.0625
W x D x H(mm) 67.3x18x31.9
Weight(g) 27
Head temperature detection thermistor
Paper detection Photo-sensor
Operation voltage range(V) 5.5~ 9.5
Logical voltage(V) 2.7~5.25
Operating temperature(°C) 0 to 50 (no condensation)
Operating humidity(RH) -20% to 70% (no condensation)
Storage temperature(°C) -25 to 70 (no condensation)
Storage humidity(RH) 5% to 95% (no condensation)
Note: All trademarks shown here are for reference purposes only. They are the property of their respective owners, and we are not authorized to sell items bearing such trademarks!
Printing Method Thermal
Dots/line 384 dots/line
Resolution 8
Printing Width(mm) 48
Paper Width(mm) 58
Feed Resolution(mm) 0.0625
W x D x H(mm) 67.3x18x31.9
Weight(g) 27
Head temperature detection thermistor
Paper detection Photo-sensor
Operation voltage range(V) 5.5~ 9.5
Logical voltage(V) 2.7~5.25
Operating temperature(°C) 0 to 50 (no condensation)
Operating humidity(RH) -20% to 70% (no condensation)
Storage temperature(°C) -25 to 70 (no condensation)
Storage humidity(RH) 5% to 95% (no condensation)
Note: All trademarks shown here are for reference purposes only. They are the property of their respective owners, and we are not authorized to sell items bearing such trademarks!
- Place of Origin:
- Xiamen city of China
- Packing:
- 100PCS/CTN
- Payment Terms:
- L/C;T/T;Cash
- Delivery Time:
- 7-14 days days
- Min Order Quantity:
- 1pc
- Standard / Certificates:
- ISO9001:2008
- Keywords:
- printer, printer mechanism, thermal printer mechanism
