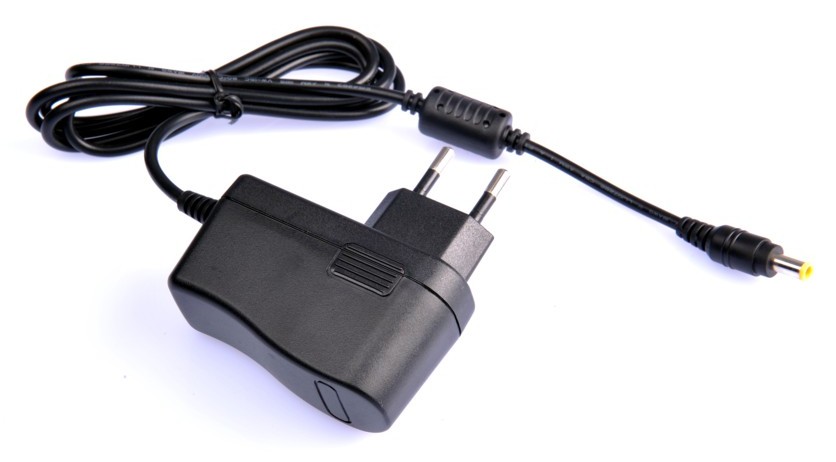

100-240v Universal Ac Dc Adapter 12v 1a Power Supply
100-240v Universal Ac Dc Adapter 12v 1a Power Supply, JYH32-1201000Item Code / Model Number:
JYH32-1201000
100-240v Universal Ac Dc Adapter 12v 1a Power Supply
12W Wall Type AC Adapter
Features:
*Universal input range 90-264VAC
*Efficiency to 75%
*Continuous Short Circuit Protection
*Over Voltage Protection
*No load input power<0.3W
*Leakage Current<0.1MA
*UL60950-1/EN60950-1 Approved
*AC Inlet IEC320/C8
*Meet CEC and Erp Level V
*(Output Cable Length≦1800mm 18AWG)
Model:JYH32-1201000
Output:
12V 1.0A
Power(max):12W
Ripple & noise (max.):100mVp-p
Efficiency:70%~75%
Voltage tolerance:±5.0%
Line regulation:±1.0%
Load regulation:±1.0%
Setup time:100ms / 115VAC at full load
Hold up time:30ms/115VAC at full load
Input:
Input voltages: 90~264V AC
Frequency range: 47~63Hz
AC Current (max.): 0.4A/115VAC 0.2A/230VAC
Inrush current(max.):COLD START 30A/115VAC 60A/230VAC
Protection:
Over voltage protection/Over current protection/Short circuit:
Environment:
Working temperatures: 0 ~ 40℃
Storage temperatures: -20℃ ~ 70℃
Working humidity:20% ~ 90% R.H non-condensing
Safety &EMC:
Safety standard:UL GS SAA KCC BSI PSE CCC
EMC Standards:CE EN55022B FCC
Green mode:Noload Power Consumption Less Than 0.3W
MTBF:50000hrs min. MIL-HDBK-217F (25 )
Dimension:74*45*30 (L*W*H)
Weight:100g/pcs
Features:
*Universal input range 90-264VAC
*Efficiency to 75%
*Continuous Short Circuit Protection
*Over Voltage Protection
*No load input power<0.3W
*Leakage Current<0.1MA
*UL60950-1/EN60950-1 Approved
*AC Inlet IEC320/C8
*Meet CEC and Erp Level V
*(Output Cable Length≦1800mm 18AWG)
Model:JYH32-1201000
Output:
12V 1.0A
Power(max):12W
Ripple & noise (max.):100mVp-p
Efficiency:70%~75%
Voltage tolerance:±5.0%
Line regulation:±1.0%
Load regulation:±1.0%
Setup time:100ms / 115VAC at full load
Hold up time:30ms/115VAC at full load
Input:
Input voltages: 90~264V AC
Frequency range: 47~63Hz
AC Current (max.): 0.4A/115VAC 0.2A/230VAC
Inrush current(max.):COLD START 30A/115VAC 60A/230VAC
Protection:
Over voltage protection/Over current protection/Short circuit:
Environment:
Working temperatures: 0 ~ 40℃
Storage temperatures: -20℃ ~ 70℃
Working humidity:20% ~ 90% R.H non-condensing
Safety &EMC:
Safety standard:UL GS SAA KCC BSI PSE CCC
EMC Standards:CE EN55022B FCC
Green mode:Noload Power Consumption Less Than 0.3W
MTBF:50000hrs min. MIL-HDBK-217F (25 )
Dimension:74*45*30 (L*W*H)
Weight:100g/pcs
- Place of Origin:
- Guangdong, China
- Price Terms:
- EXW Shenzhen
- Other Price Terms:
- FOB Shenzhen
- Packing:
- Carton box+PE bag or according to your requirement
- Payment Terms:
- T/T
- Payment Remarks:
- Or Paypal/Western Union
- Delivery Time:
- 7-15work days
- Min Order Quantity:
- 500pcs
- Standard / Certificates:
- CE UL FCC SAA GS TUV
- Keywords:
- 12v 1a power adapter
