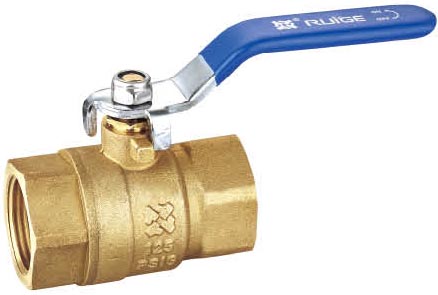

Brass Ball Valve
Brass Ball Valve, BBV3122Item Code / Model Number:
BBV3122
Brass Ball Valve
Features:
*2pcs design, body and bonnet threaded on.
*Complete sizes 1/4”-4” FxF ends conform to NPT pipe screws (BSPT, BSP, PT available if required).
*All straight full port passage ensure less pressure loss at high flow rate.
*Long flat lever for user-friendly low torque operation.
*Anti-blow stem and adjustable packing nut enable easy maintenance during long service life.
*Working Pressure: 600psi (PN40).
*Working Temperature: -20 to 150 centigrade.
*Working Medium: Non-corrosive W.O.G.
Materials:
* Hot forged brass body and bonnet.
*Chromed steel lever with vinyl dipped coating.
*High tensile brass stem and packing nut.
*Fine polished brass/S.S. Ball.
*Virgin PTFE packing and ball seats.
*High quality lubrication grease and adhesive glue.
*2pcs design, body and bonnet threaded on.
*Complete sizes 1/4”-4” FxF ends conform to NPT pipe screws (BSPT, BSP, PT available if required).
*All straight full port passage ensure less pressure loss at high flow rate.
*Long flat lever for user-friendly low torque operation.
*Anti-blow stem and adjustable packing nut enable easy maintenance during long service life.
*Working Pressure: 600psi (PN40).
*Working Temperature: -20 to 150 centigrade.
*Working Medium: Non-corrosive W.O.G.
Materials:
* Hot forged brass body and bonnet.
*Chromed steel lever with vinyl dipped coating.
*High tensile brass stem and packing nut.
*Fine polished brass/S.S. Ball.
*Virgin PTFE packing and ball seats.
*High quality lubrication grease and adhesive glue.
- Place of Origin:
- China
- Brand:
- Ruige Or Customer's
- Unit Price:
- USD negotiable
- Price Terms:
- EXW Yuhuan, China
- Other Price Terms:
- FOB, CNF, CIF for FCL shipment
- Packing:
- neutral export packing, or customer's design
- Payment Terms:
- L/C;T/T;Cash;D/P
- Delivery Time:
- 7-45 days
- Min Order Quantity:
- 1-3000pcs
- Standard / Certificates:
- Capatable for CE, ACS, UL, FM, WATERMARK and ec.
- Keywords:
- hot forging, full port, ptfe sealing
